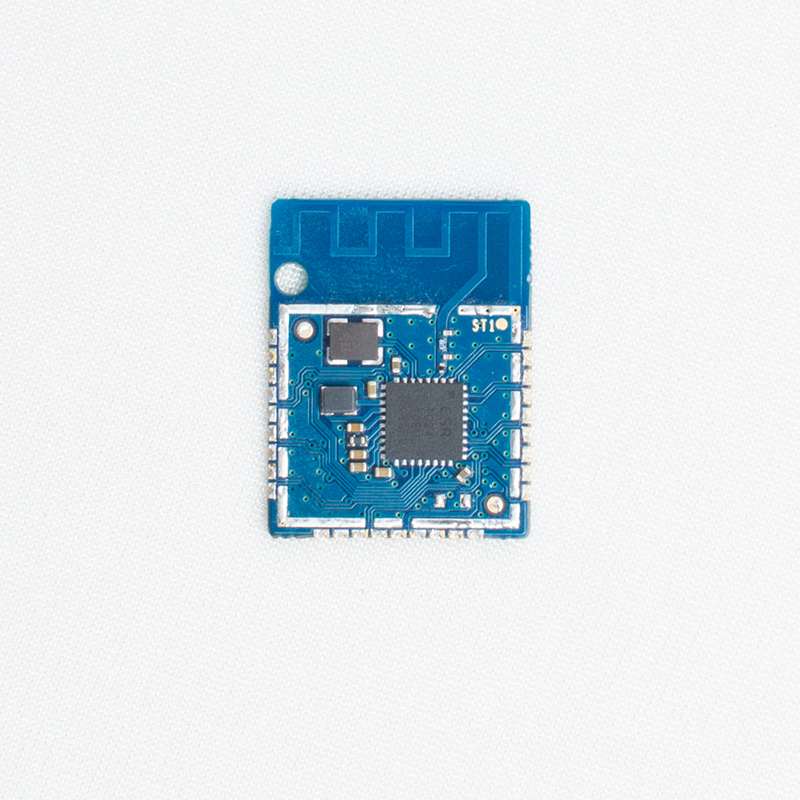

BLE Module

Specification

Solution

  • TLSR8267F512 / CSR1024 / nRF52810

RF features

  • BLE/2.4GHz RF transceiver embedded,
  • Bluetooth 4.2 Compliant, 1Mbps and 2Mbps LE Enhancement FIPD version.
  • Rx Sensitivity: [email protected] 1Mbps.
  • Tx output power: +7dBm.

General features

  • 2 PWM (Up to 6 channels of PWM,shared GPIOs)
  • Embeds hardware AES
  • Compatible with USB2.0 Full speed mode
  • With 14bit ADC with PGA
  • Embed-in Temperature sensor
  • operating temperature: -40℃~+85℃ temperature range
  • Supports Apple HomeKit without external DSP

Features of power management module

  • Battery monitor: Supports low battery detection.
  • Power supply: 3.3V
  • Multiple stage power management to minimize power consumption.
  • Low power consumption:
    ◇Receiver mode current: 12mA
    ◇Transmitter mode current: 15mA @ 0dBm power, 22mA @ max power
    ◇ Pair mode current: Average [email protected] Master end, Average [email protected] Slave end
    ◇ Suspend mode current: 34uA (IO wakeup), 36uA (Timer wakeup)
    ◇ Deep sleep mode current: 3.6uA
