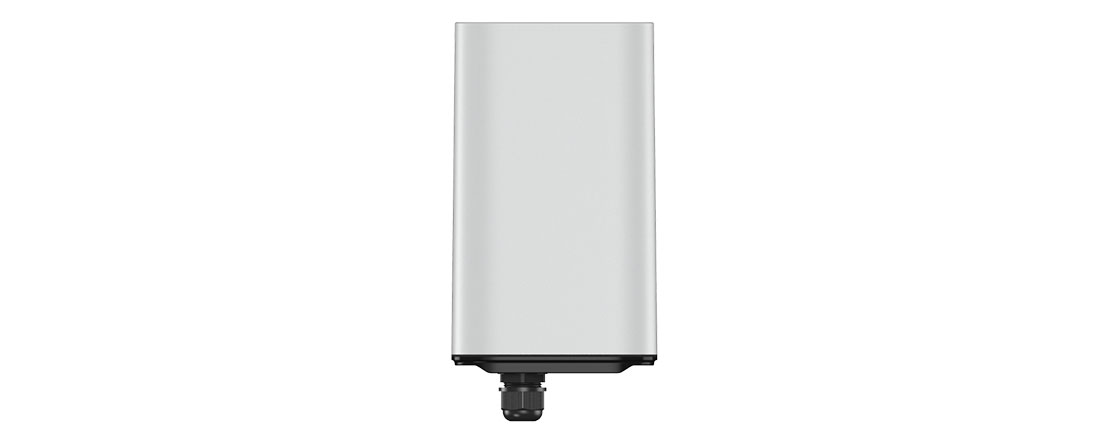

5G Outdoor CPE – C120

Platform Qualcomm SDX55 3GPP Release 15 Compliance
Network supportSupported frequency:
  • Sub6 Sub6: n1/n3/n5/n7/n20/n28/n38/n40/n41/n77/n78/n79
  • LTE:B1/2/3/4/5/7/8/20/28a/28b/34/38/39/40/41/42/43/48
SA&CAT 5G Sub-6, NSA&SA/up to 2CC/200MHz EN-DC
LTE Band width 1.4M/3M/5M/10M/15M/20M/100MHz
MIMO Sub-6: DL 4×4 / UL 2×2
BLE nRF52833 BLE 5.3, For configuration and installation assistant
AntennaBuilt-in high gain antennas:
  • 8 x omni-directional antennas for 360° Signal reception. (5.5dBi)
  • 2 x enhanced directional antennas on NR bands for better quality of 5G network. (9 dBi)
Physical Interface1 x 2.5CF LAN Port (PoE)
1 x Micro-Sim slot
1 x Reset Key
1 x USB Type-C
5 LED indicators (3 bars signal strength indicators , 1 network status and 1 power indicator)
Power Supply
  • Passive PoE: DC 48V/0.35A
  • AC/DC Power supply: AC 100V-240V
Environmental
  • IP65 dust and waterproof.
  • 6KV Lightning protection.
  • Supports wall-mounted and pole-mounted installation.
  • -40 – 55°C operation temperature, support preheating mechanism in low temperature environment.
Size 225*130*45mm
