C210 Cat4 CPE

Product Overview

The Cat4 Indoor CPE C210 is a wireless router, which support 2.4G Wi-Fi, providing high-speeding and stable LTE Cat4 network for users at home or in office. The product confirms to 3GPP Release10 standard.

C210 key features for user:

  • Data service
  • SMS
  • Security service
  • Local and OTA maintenance management function

Features

C210 mainly supports the following features:

Item Description
Frequency Access to LTE wireless networks
High-speed data access LTE FDD: DL 150Mbps, UL 50Mbps
LTE TDD: DL 110Mbps, UL 10Mbps
HSPA+: DL 21Mbps, UL 5.76Mbps
HSPA: DL 14.4Mbps, UL 5.76Mbps
WCDMA PS: 384Kbps
EDGE: DL 296Kbps, UL 236.8Kbps
GPRS: 85Kbps
Wi-Fi Complies with wireless 802.11b/g/n standards with data rates up to 300Mbps
Wi-Fi Security: WEP, WPA2, AES or TKIP, WP A2/WPA
Max 32 Wi-Fi connections
WPS (PBC, PIN)
MAC Whitelist, Blacklist,
Cellular Network Management Traffic statistics
APN Profile setting
Profile Management
Router DHCP server
DNS
Security IP/Port/URL filter, Port forward, DMZ, UPnP, DDNS
Messaging SMS
Phone book
FW Update FOTA/Local update
SIM Removable nano(4FF) SIM

Technical Specifications

Hardware Specifications

Item Description

Technical Standard

WAN

3GPP Release 10

WLAN

IEEE 802.11b/g/n

Working Frequency Band

Remark: Here are generic bands for market sample, bands customiz ed is available.

LTE

B1/B3/B5/B8/B40

WLAN

2.4GHz

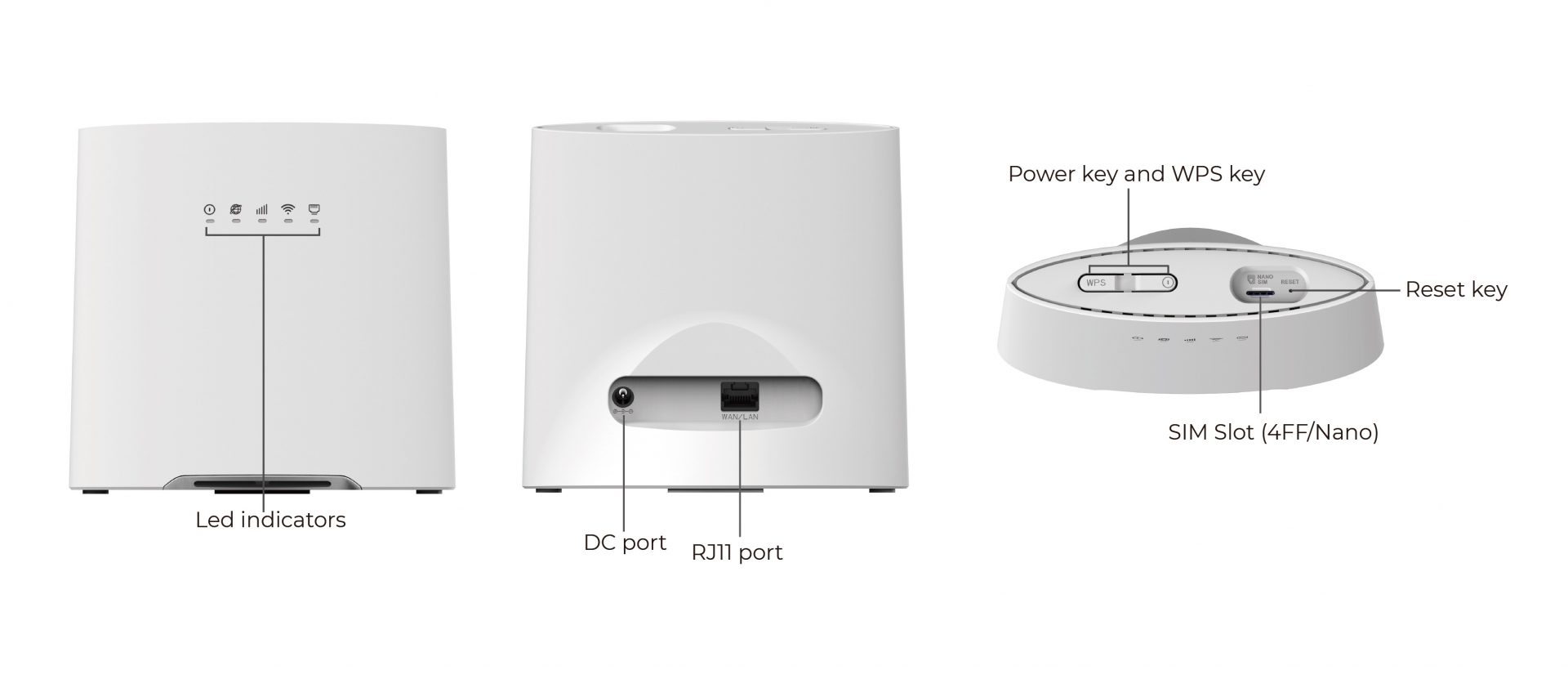

External Port

● Two Million ethernet RJ45 ports (Optional)

● One RJ11 port for VoLTE (Optional)

● Two SMA ports for external antenna(Optional)

● One DC port for power adapter

● One nano(4FF) sim slot

Indicator

● One power LED

● One mode LED

● One signal strength LED

● One Wi-Fi LED

● One LAN LED

Button

● One Power button

● One WPS button

● One Reset(hidden) button

Antenna

● Built-in LTE/UMTS/GSM primary antenna

● Built-in LTE/UMTS secondary antenna

● Built-in WLAN 2.4G antenna

Maximum TX power

LTE

Conform to 3GPP Power Class 3

Wi-Fi Gain

About 3.5dBi

RX sensitivity

LTE

Conform to 3GPP Definition

UMTS

Conform to 3GPP Definition

GSM

Conform to 3GPP Definition

Max Power consumption

7W

DC power supply

Input 5V/2A

Dimensions

141.1*134.2*31.2mm

Battery

4000mAh 18650 battery(Optional)

Case material

PC, ABS

Temperature

● Working temperature: 0°C to 40°C

● Storage temperature: -20°C to 60°C

Humidity

5%-95%(Non-condensing)

Antenna Frequency Specifications

Item Description

Gain

LTE/UMTS/GSM Primary: about 3.0dBi
LTE/UMTS/GSM Secondary: about 3.5dBi
WIFI 1: 3.0dBi
WIFI 2: 3.5dBi

Efficiency

LTE/UMTS/GSM Primary: about -2dBi
LTE/UMTS/GSM Secondary: about -2dBi
WIFI 1: -0.6dBi
WIFI 2: -2dBi

Polarization

LTE/UMTS/GSM: Linear
Wi-Fi: Linear

Software Specifications

Item Description

Cellular wireless network

Network Search

Supports automatic or manual network search, the default is automatic

Connection Managem ent

Supports automatic and manual connection to the cellular network

Network Mode

Supports various network mode

● Auto

● LTE only

● WCDMA only

● GSM only

Profile Management

Auto mode, set the profile information

required for Internet access according to the SIM card automatically, avoid cumbersome operations for users

● Profile name

● APN name

● User name

● User password

● Authentication type, auto/pap/chap IP type, ipv4/6

Traffic statistics

Supports traffic statistics, including download, upload and total.

Wi-Fi

Wi-Fi settings

● SSID/Key

● Channel selection, auto or manual

● Various security mode and algorithms

  • Disable
  • WEP (wired equivalent protocol)
  • WPA2 personal (Wi-Fi Protected Access 2 Personal), AES or TKIP
  • WPA2/WPA mixed mode (Wi-Fi Protected Access 2 Personal/Wi-FiProtected Access Personal), AES or TKIP

● Enable/disable SSID broadcast

● max number of users up to 32 Enable/disable Wi-Fi

WPS

Wi-Fi Protected Setup (WPS) is a latest standard published by the Wi-Fi Alliance with the aim of simplifying the configuration process to establish a secure wireless home network.

The device Supports two WPS methods

● PBC (Push Button Configuration), in which user simply has to push a actual button or virtual one on web UI

● PIN (Personal Information Number), in which a PIN is entered into device through Web UI

MAC Address Authentication

Support the following MAC address authentication method

● White list

● Black list

Router

The device works as a route, supports

● Default gateway address: 192.168.8.1

● Standard protocol such as ARP, ICMP, IPv4, IPv6, etc.

NAT, translate a public IP address to a private IP address and vice versa

DHCP server

DHCP server dynamically allocate IP address to client devices

● Enable/disable DHCP server

● Configures DHCP server address pool

● Lease time, default as 86400 seconds

DNS relay

Supports DNS relay for client devices

● Auto mode, use DNS servers from WAN

● Manual mode, set primary DNS and secondary DNS manually

Basic Status

Users can view the following basic device information on web UI

● SIM status, Signal strength, roaming status

● Operator name

● Data transmission indication

● Battery status

● Network access technology

● Network Status

● WAN IP

● DNS

● Wi-Fi Status

The number of devices connected to CPE and their details, including name, IP, MAC, etc.

Phone Book

Supports contact group management

● Add group

● Delete group(s), batch operation is supported

● View and modify existing group information Supports search

Supports contact management

● Add contact

● Delete contact(s), batch operation is supported

● Move contact(s) to group, batch operation is supported

● Import contact from SIM card

● Supports search

● View contacts list, Supports pagination display

● Modify existing contact information, including name, number, group, etc.

Select one or more contacts and send them a text message

SMS

Supports SMS (short message service) related functions

● Inbox, outbox, and draft management

● View list of messages, Supports pagination display

● and detail of messages, including number, content, date, etc.

● Edit, save, delete, and modify SMS

● Sending short message to one or more contacts

● Receives short message, new and unread message alerts

● Replay and forward message

● Supports various data coding scheme, GSM 7-bit and UCS

● Supports normal message, up to 160 ASCII characters or 70 UCS2 characters

● Supports long message (concatenated short messages), up to 612 ASCII characters or 268 UCS2 characters

● Supports flash message

Security

The device supports the following security functions.

● IP Filter

● Port Filter

● URL Filter

● Port forward

● DMZ

● UPnP

● DDNS

Firmware Update

FOTA

Provide complete FOTA solution

● Detect new firmware information on FOTA server manually/automatically, including version, size, release date, and release note, etc.

● Download new firmware from the server and update the device

The server initiates a firmware update for the specified device

Local Update

Users can also upload firmware and update it through the Web UI

SIM

management

Supports PIN of SIM Card, including

● Enable/disable PIN

● Change PIN

● Verify PIN

● Reset Pin by PUK

Customization functions

● Web UI

● SIM Lock

● APN (Profile)

● Trusted boot

● USSD

● Domain name

System Architecture

Packing List & Certification

Packing List

Item Qty(pcs) Description Remarks
CPE Device 1   Standard
Network cable 1 1m Standard
Gift Box 1 Customized Standard
User manual 1 Customized Standard
Power adapter 1 5V/2A Standard

Certification

Item Description
CE CE certification
Local Certification Support as per request
