Cost-Effective 5G Connectivity for Scalable Home Broadband Deployment
As broadband demand continues to grow, operators need flexible ways to expand high-speed internet access—especially in areas where fiber deployment can be costly, difficult, or time-consuming.
WEWINS 5G FWA Home Broadband Solution combines 5G wireless connectivity with Wi-Fi 6 and Gigabit Ethernet to provide a flexible alternative for home broadband deployment.

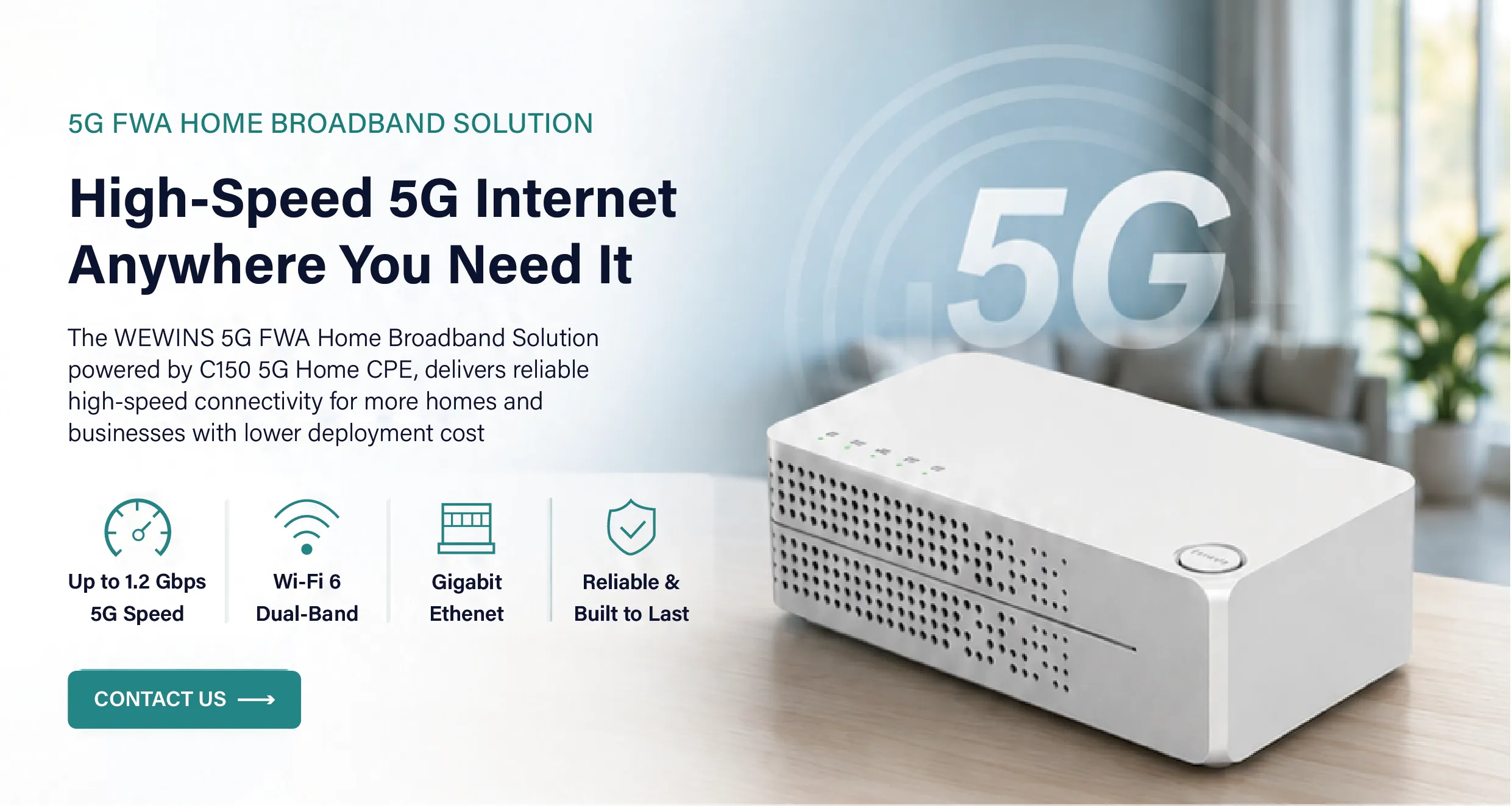

Powered by the C150 5G Home CPE, the solution is designed to help operators deliver high-speed broadband with simplified deployment, reliable operation, remote management, and a cost-optimized hardware architecture.
Performance. Reliability. Cost Efficiency.
A practical 5G FWA solution built for scalable broadband deployment.
The Challenge
Expanding Broadband Beyond Fiber
Traditional fixed broadband infrastructure can be difficult or costly to deploy in certain environments.
Rural and underserved areas may have limited broadband infrastructure, while older residential communities can present challenges for new fiber deployment. Temporary commercial locations and rental homes may also require broadband without complex cabling or permanent infrastructure modifications.
For operators, the challenge is to provide reliable high-speed connectivity while keeping deployment costs and maintenance requirements under control.
The Solution
5G FWA for Flexible Broadband Deployment
WEWINS 5G FWA enables operators to use existing 5G networks to provide broadband connectivity to homes and other locations without relying entirely on traditional fixed-line infrastructure.
The C150 5G Home CPE integrates:
5G Connectivity
High-speed Sub-6 GHz 5G connectivity with up to 1.2 Gbps downlink.
Wi-Fi 6
Dual-band 2.4 GHz + 5 GHz Wi-Fi 6 with OFDMA and MU-MIMO, supporting up to 32 connected devices.
Gigabit Ethernet
1 x Gigabit RJ45 with WAN/LAN auto-adaptation for flexible integration with wired home networks.
Reliable Hardware
Fanless passive cooling, multi-level circuit protection and an MTBF of ≥30,000 hours for long-term operation.
Remote Management
Remote FOTA upgrades and parameter configuration help reduce on-site maintenance requirements.
Cost-Optimized Architecture
A simplified hardware architecture and optimized BOM support cost-efficient large-scale deployment.
One CPE, Multiple Broadband Scenarios
The C150 is designed to support different deployment requirements, helping operators extend broadband services beyond traditional fiber coverage.
Rural Broadband Coverage
Extend high-speed broadband to underserved areas where fixed-line infrastructure is limited or difficult to deploy.
Fiber Replacement in Older Communities
Provide an alternative broadband access solution for older residential communities where new fiber deployment may require additional infrastructure investment.
Temporary Connectivity for Shops
Enable fast and flexible broadband deployment for shops and other commercial locations that require connectivity without complex installation.
Broadband for Rental Homes
Provide high-speed home broadband without extensive cabling or permanent infrastructure modifications.
These four scenarios are specifically identified in the C150A solution material.
Built for High-Speed Home Connectivity
Up to 1.2 Gbps 5G Downlink
The C150 supports Sub-6 GHz 5G with downlink speeds of up to 1.2 Gbps and uplink speeds of up to 200 Mbps.
Its 4×4 MIMO downlink and 2×2 MIMO uplink configuration provides the hardware foundation for high-speed broadband services, while hardware-level optimization supports connectivity in weak-network and edge-coverage environments.
Wi-Fi 6 for the Connected Home
A high-speed 5G connection needs an equally capable in-home network.
C150 features deal-band Wi-Fi 6, supporting:
- 2.4 GHz + 5 GHz simultaneous operation
- 2×2 MIMO
- OFDMA
- MU-MIMO
- Up to 32 connected devices
- Up to 574 Mbps on 2.4 GHz
- Up to 1201 Mbps on 5 GHz
This makes the CPE suitable for multi-device home environments, including 4K streaming, cloud gaming, video calls and smart home connectivity.
Flexible Wired & Wireless Networking
Gigabit Ethernet for Existing Home Networks
C150 includes a 1 x Gigabit RJ45 WAN/LAN port with automatic WAN/LAN adaption.
It can connect to PCs, IPTC systems, monitoring equipment and downstream network devices, while hardware NAT and a dedicated Gigabit PHY support high-speed wired forwarding.
This allows operators to integrate the CPE into different home networking environments without requiring users to completely replace their existing wired equipment.
Designed for Reliable 24/7 Operation
For operators, broadband CPE is expected to remain connected for long periods with minimal intervention.
C150 adopts a fanless passive cooling design, wide-voltage power support and multi-level hardware protection including over-voltage, over-current and surge protection.
With an MTBF of ≥30,000 hours, the device is designed for stable 24/7 operation in indoor home environments.
Simplified Deployment & Remote Management
C150 is designed to reduce both installation complexity and ongoing maintenance requirements.
Plug & Play
Automatic power-on and 5G network search help simplify deployment.
Easy On-Site Maintenance
Visual status indicators for power, signal, network and Wi-Fi allow installation teams to quickly identify device status.
Remote FOTA
Operators can remotely upgrade firmware and configure parameters in batches helping reduce unnecessary on-site maintenance and service visits.
Cost-Efficient for Large-Scale Deployment
For operators expanding FWA services, CPE cost can directly influence the economics of broadband deployment.
C150 adopts a simplified hardware architecture and optimized BOM design, focusing on essential home broadband capabilities while supporting standardized SMT mass production.
This approach is designed to help reduce terminal hardware costs and support more cost-efficient large-scale deployment.
Why Choose WEWINS 5G FWA Solution?
High Performance
Up to 1.2 Gbps 5G downlink with Wi-Fi 6 connectivity.
Flexible Deployment
Suitable for rural broadband, older communities, shops and rental homes.
Reliable Operation
Fanless design, multi-level protection and ≥30,000-hour MTBF.
Easy Management
Remote FOTA and parameter configuration reduce maintenance requirements.
Cost Efficiency
Optimized hardware architecture supports large-scale FWA deployment.
From 5G Network to Home Broadband
WEWINS 5G FWA Home Broadband Solution provides operators with a practical way to extend broadband services where traditional fixed infrastructure may not be the most efficient option.
By combining 5G access, Wi-Fi 6, Gigabit Ethernet, reliable hardware and simplified remote management, the C150 is designed to balance the three key requirements of FWA deployment:
Performance. Reliability. Cost.
Whether expanding rural broadband coverage, replacing in challenging environments, or providing flexible connectivity for commercial and rental properties, WEWINS provides the hardware foundation for scalable 5G FWA deployment.
Build Your 5G FWA Solution with WEWINS
