CAT4 CPE C100

with data rates up to 300Mbps

A2/WPA

Remark: Here are generic bands fo r market sample, bands customized is available.

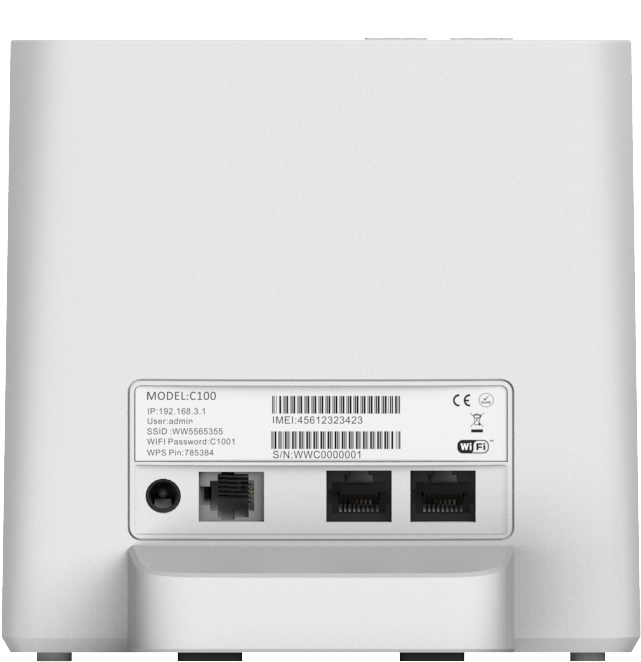

• One RJ11 port for VoLTE (Optional)
• Two SMA ports for external antennas (Optional)
• Two Million ethernet RJ45 ports(Optional)
• One DC port for power adapter
• One nano(4FF) sim slot

• 4000mAh 18650 battery (Optional)

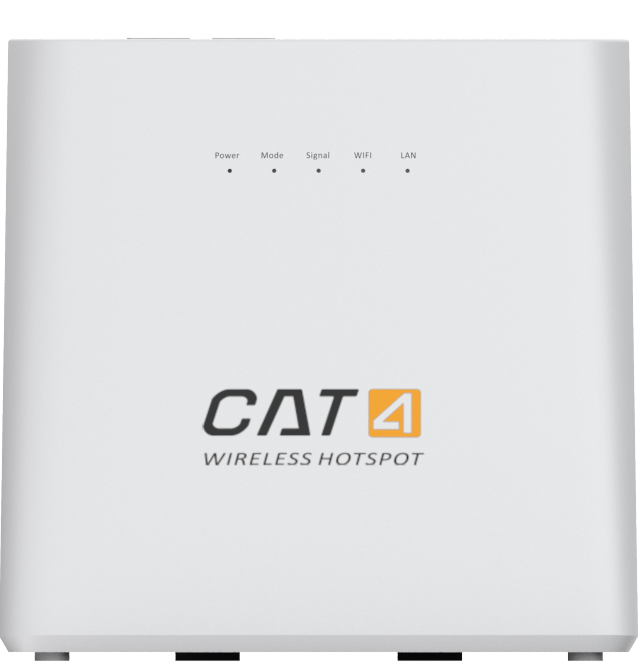

• One power LED
• One mode LED
• One signal strength LED
• One Wi-Fi LED
• One LAN LED

• One Power button
• One WPS button
• One Reset(hidden) button

• Built-in LTE/UMTS/GSM primary antenna
• Built-in LTE/UMTS secondary antenna
• Built-in WLAN 2.4G antenna

• Working temperature: 0°C to 40°C
• Storage temperature: -20°C to 60°C

Cellular wireless network

Network Search

Supports automatic or manual network search, the default is automatic

• Auto

• LTE only

• WCDMA only

• GSM only

Connection Managem ent

Supports automatic and manual connection to the cellular network

Network Mode

Supports various network mode

Profile Management

Auto mode, set the profile information

required for Internet access according to the SIM card automatically, avoid cumbersome operations for users

• Profile name

• APN name

• User name

• User password

• Authentication type, auto/pap/chap IP type, ipv4/6

Traffic statistics

Supports traffic statistics, including download, upload and total.

Wi-Fi

Wi-Fi settings

• SSID/Key

• Channel selection, auto or manual

• Various security mode and algorithms

  • Disable

  • WEP (wired equivalent protocol)

  • WPA2 personal (Wi-Fi Protected Access 2 Personal), AES or TKIP

  • WPA2/WPA mixed mode (Wi-Fi Protected Access 2 Personal/Wi-Fi Protected Access Personal), AES or TKIP

• Enable/disable SSID broadcast
• Max number of users up to 32
  Enable/disable Wi-Fi

Wi-Fi Protected Setup (WPS) is a latest standard published by the Wi-Fi Alliance with the aim of simplifying the configuration process to establish a secure wireless home network.

The device Supports two WPS methods

• PBC (Push Button Configuration), in which user simply has to push a actual button or virtual one on web UI
• PIN (Personal Information Number), in which a PIN is entered into device through Web UI

Support the following MAC address authentication method

• Black list

Router

The device works as a route, supports

• Default gateway address: 192.168.8.1
• Standard protocol such as ARP, ICMP, IPv4, IPv6, etc.

NAT, translate a public IP address to a private IP address and vice versa

DHCP server

DHCP server dynamically allocate IP address to client devices

• Enable/disable DHCP server
• Configures DHCP server address pool
• Lease time, default as 86400 seconds

DNS relay

Supports DNS relay for client devices

• Auto mode, use DNS servers from WAN Manual mode, set primary DNS and secondary DNS manually

Basic Status

Users can view the following basic device information on web UI

• SIM status, Signal strength, roaming status

• Operator name

• Data transmission indication

• Battery status

• Network access technology

• Network Status

• WAN IP

• DNS

• Wi-Fi Status

The number of devices connected to CPE and their details, including name, IP, MAC, etc.

Phone Book

Supports contact group management

• Add group

• Delete group(s), batch operation is supported

• View and modify existing group information Supports search

Supports contact management

• Add contact

• Delete contact(s), batch operation is supported

• Move contact(s) to group, batch operation is supported

• Import contact from SIM card

• Supports search

• View contacts list, Supports pagination display

• Modify existing contact information, including name, number, group, etc.

  Select one or more contacts and send them a text messag

SMS

Supports SMS (short message service) related functions

• Inbox, outbox, and draft management

• View list of messages, Supports pagination display

• and detail of messages, including number, content, date, etc.

• Edit, save, delete, and modify SMS

• Sending short message to one or more contacts

• Receives short message, new and unread message alerts

• Replay and forward message

• Supports various data coding scheme, GSM 7-bit and UCS

• Supports normal message, up to 160 ASCII characters or 70 UCS2 characters

• Supports long message (concatenated short messages), up to 612 ASCII characters or 268 UCS2 characters

Supports flash message

Security

The device supports the following security functions.

• IP Filter

• Port Filter

• URL Filter

• Port forward

• DMZ

• UPnP

• DDNS

Power Management

Firmware Update

FOTA

Provide complete FOTA solution

• Detect new firmware information on FOTA server manually/automatically, including version, size, release date, and release note, etc.
• Download new firmware from the server and update the device The server initiates a firmware update for the specified device

Local Update

Users can also upload firmware and update it through the Web UI

SIM

management

Supports PIN of SIM Card, including

• Enable/disable PIN

• Change PIN

• Verify PIN

• Reset Pin by PUK

Customization functions

• Web UI

• SIM Lock

• APN (Profile)

• Trusted boot

• USSD

• Domain name
