5G Outdoor CPE – C120

Specification

Platform	Qualcomm SDX55 3GPP Release 15 Compliance
Network support	Supported frequency: Sub6 Sub6: n1/n3/n5/n7/n20/n28/n38/n40/n41/n77/n78/n79 LTE:B1/2/3/4/5/7/8/20/28a/28b/34/38/39/40/41/42/43/48
SA&CAT	5G Sub-6, NSA&SA/up to 2CC/200MHz EN-DC
LTE Band width	1.4M/3M/5M/10M/15M/20M/100MHz
MIMO	Sub-6: DL 4×4 / UL 2×2
BLE	nRF52833 BLE 5.3, For configuration and installation assistant
Antenna	Built-in high gain antennas: 8 x omni-directional antennas for 360° Signal reception. (5.5dBi) 2 x enhanced directional antennas on NR bands for better quality of 5G network. (9 dBi)

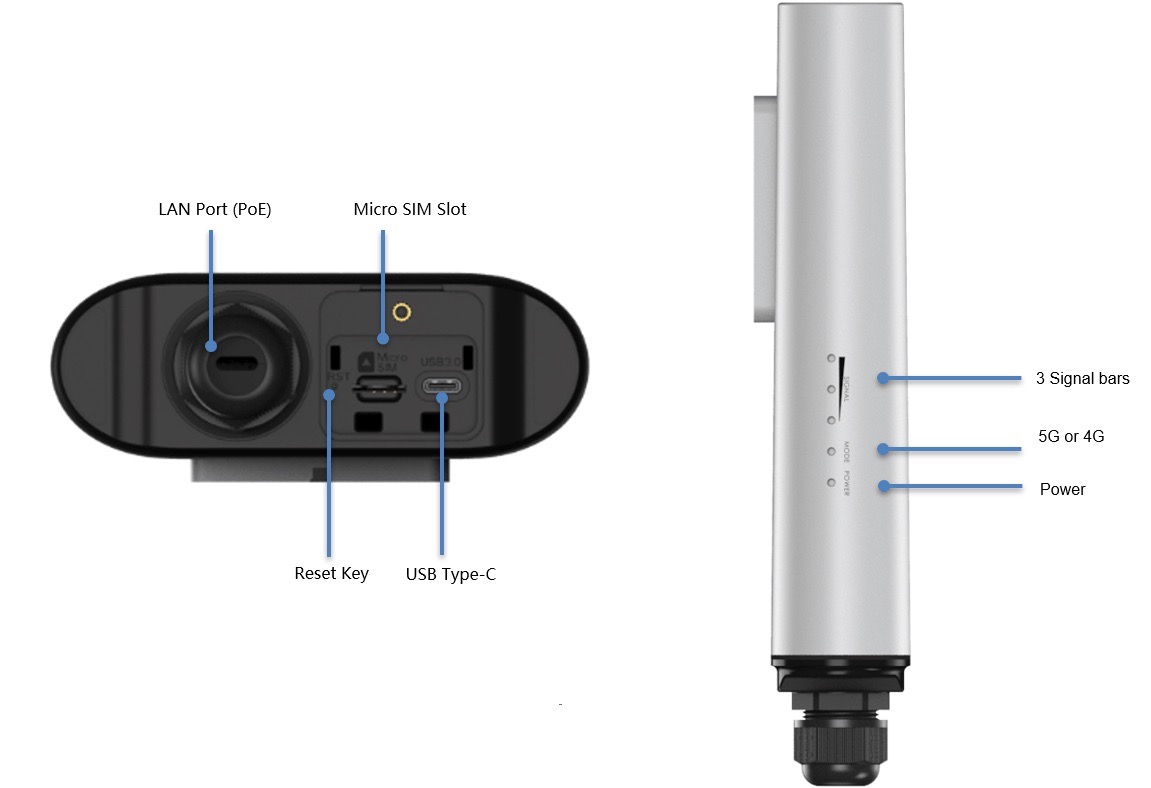

Physical Interface	1 x 2.5CF LAN Port (PoE) 1 x Micro-Sim slot 1 x Reset Key 1 x USB Type-C 5 LED indicators (3 bars signal strength indicators , 1 network status and 1 power indicator)
Power Supply	Passive PoE: DC 48V/0.35A AC/DC Power supply: AC 100V-240V

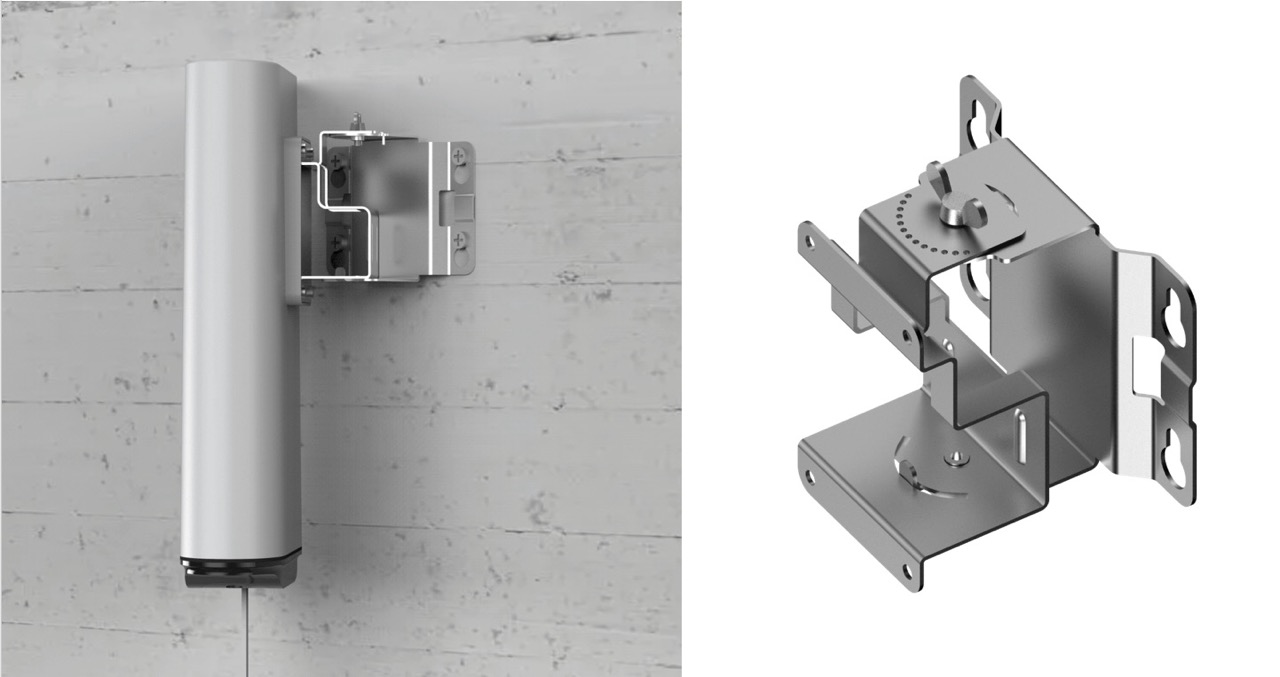

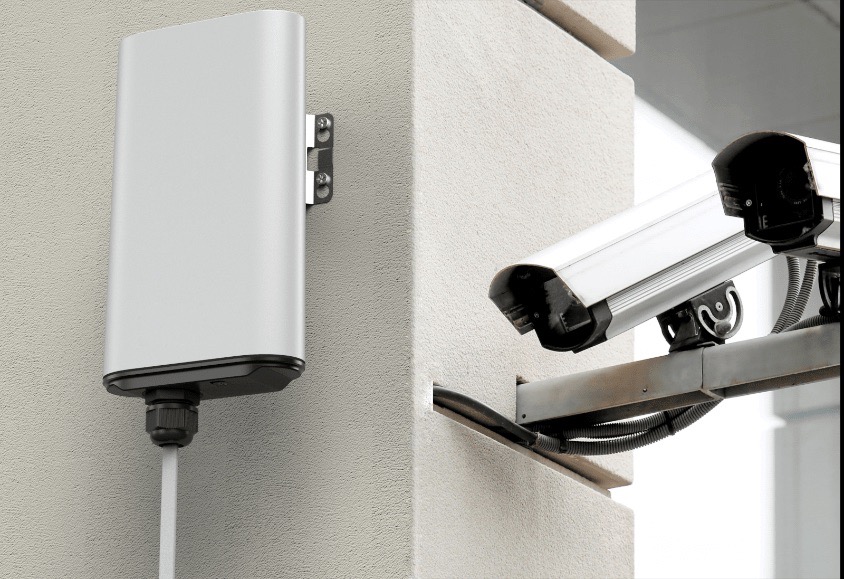

Environmental	IP65 dust and waterproof. 6KV Lightning protection. Supports wall-mounted and pole-mounted installation. -40 – 55°C operation temperature, support preheating mechanism in low temperature environment.
Size	22513045mm
