CAT6 MIFI-M53

CAT6 MIFI-M53

M53-One Device. Endless Connections.

Product Overview

TheWewins M53 is a portable LTE Cat6 MiFi router designed for operators and enterprise deployents.

With a removable Nano(4FF) SIM slot and optional eSIM,M53 support flexible provisioning and global frequency band customization to meet diverse market requirement.

Powered by a 6400 mAh non-removable battery with OTG 6W reverse charging,it ensures continuous serice and backup power in the field.

M53 integrates dual-band Wi-Fi,a 100Mbps LAN Port,and two MCX external antenna connectors for enhanced coverage in weak-signal areas.In addition,TR-069 remote management enables effcient device monitoring and large-scale deployment.

Compact yet powerful,M53 delivers reliable,enterprise-grade connectivity for temporary sites,mobile offices,and operator service extensions.

  • Nano SIM + eSIM
    Single Nano SIM slot, optional eSIM support
  • Fast LTE Cat6
    High-speed 4G connectivity for multiple devices
  • Long Battery Life
    6400 mAh non-removable battery with OTG 6W reverse charging
  • External Antenna Ports
    Two MCX ports for optional signal boost.

Get a Quote

Key Features

Cat6 4G+ Speed

Dual-Band Wi-Fi

Connect 32 Devices

6400mAh Battery

LAN Port

External Antenna Support

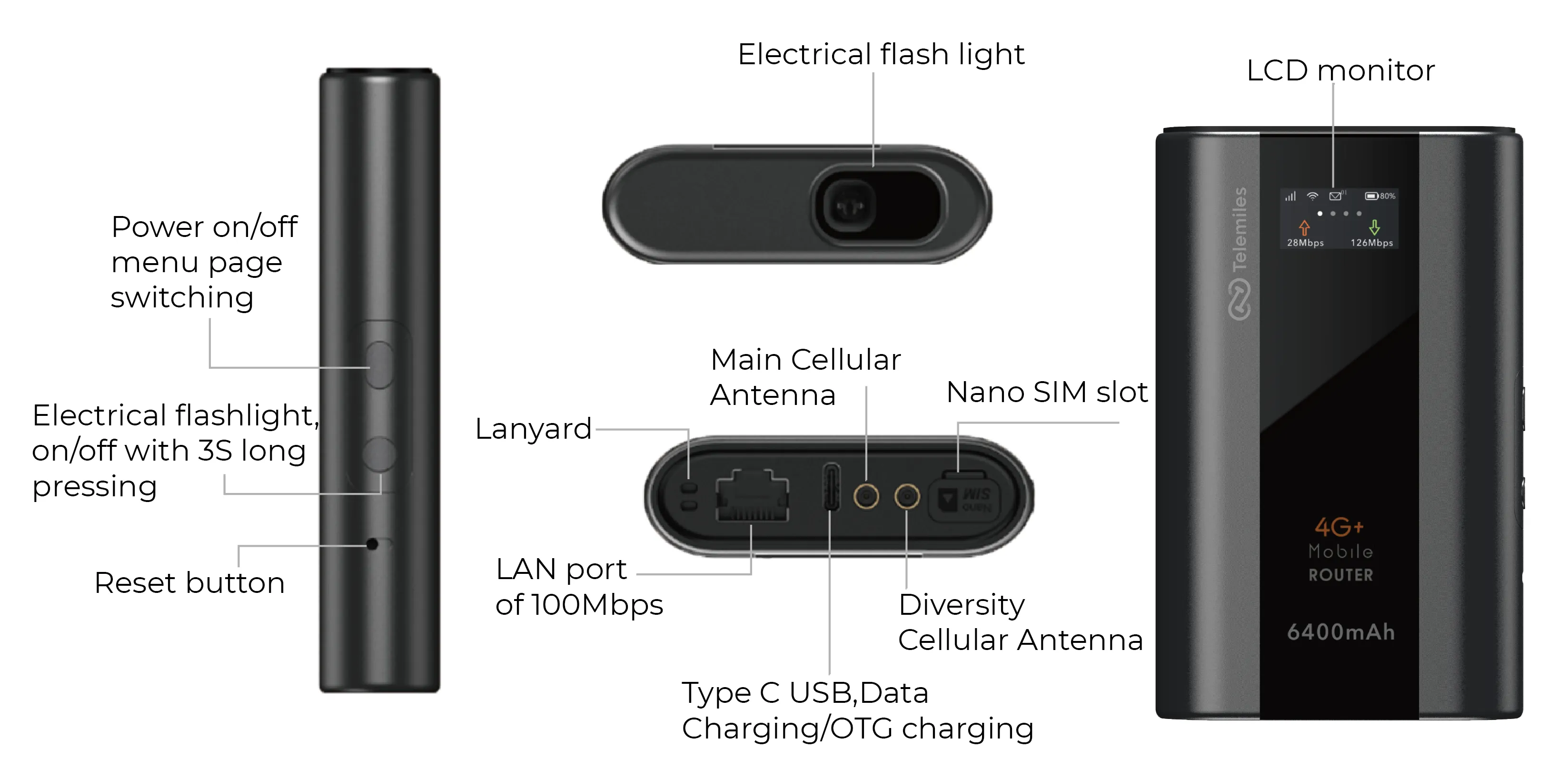

Product configuration

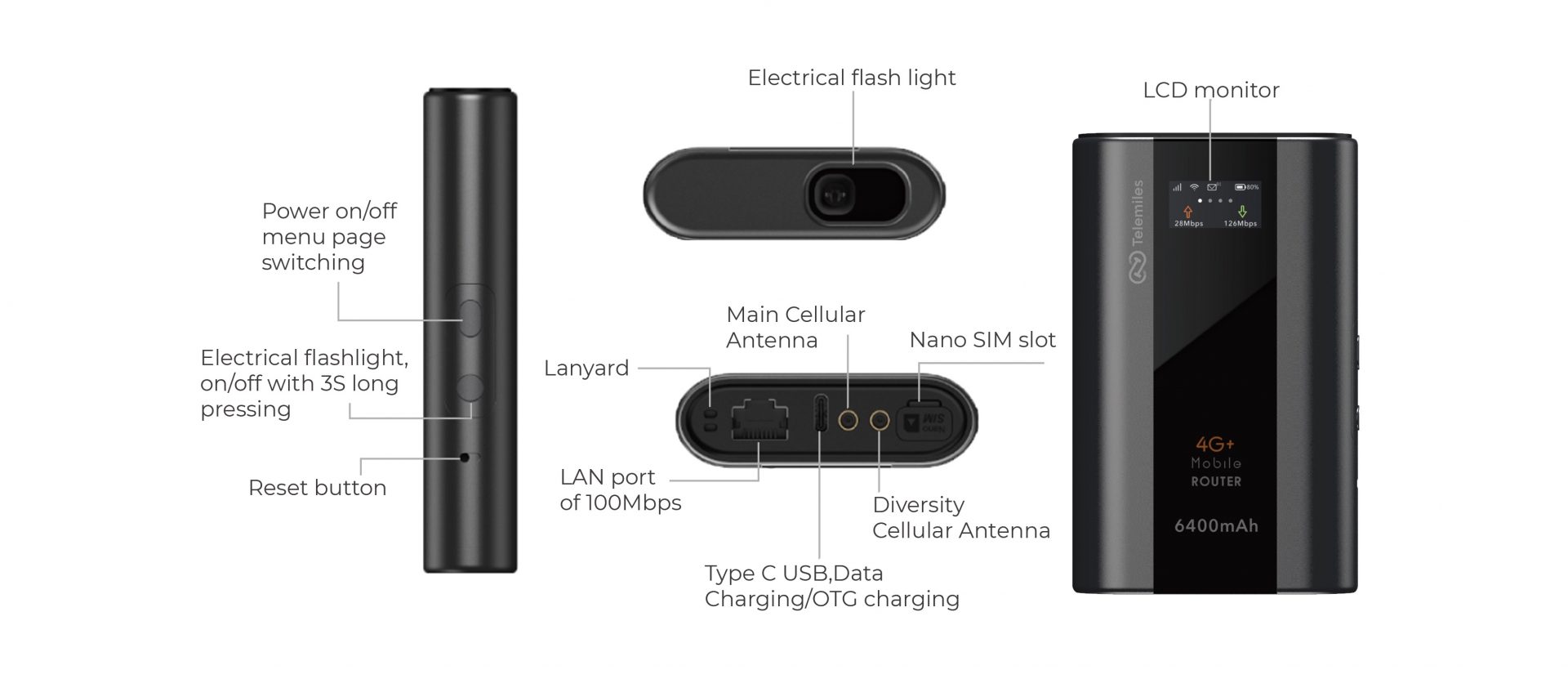

M53-Product configuration

Application Scenarios

  • Business Travel & Remote Work
    – Stay connected on the go.
  • Field Projects & Temporary Sites
    – Quick deployment for teams and offices.
  • Mobile Broadcasting & Media
    – Support for live streaming and data upload.
  • Emergency Backup Internet
    – Reliable fallback when main connection fails.

Certifications

  • CE Certified
  • UN38.3 Battery Certified
  • Supports local certifications upon request

FAQ

M53 supports one Nano (4FF) SIM slot. An optional eSIM is also supported. Micro SIM cards are not compatible.

M53 has a non-removable 6400 mAh Li-ion battery. It supports OTG 6W reverse charging to power other devices.

Yes, M53 has two MCX external antenna ports for optional signal enhancement.

No, M53 only has a single Nano SIM slot. The eSIM is optional and does not count as a physical second SIM.

M53 supports LTE Cat6 with speeds up to 300 Mbps downlink and 50 Mbps uplink.

Specifications

Item Description
Cellularrate DL 300Mbps, UL 50Mbps
Display 0.96 Inch TFT LCD
Battery 6400mAh
Wi-Fi Standard Wi-Fi 6
Max Wi-Fi Connections 32

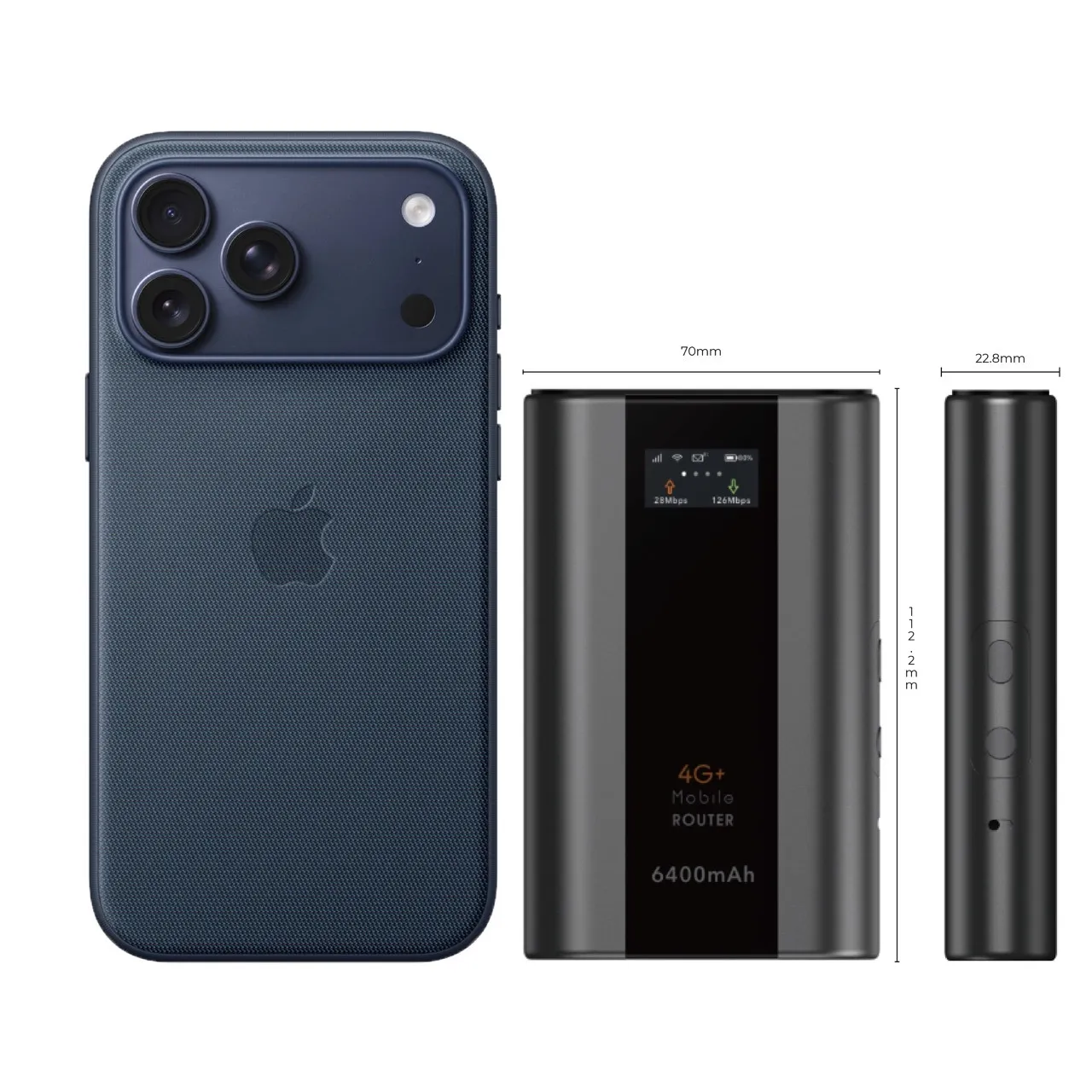

Dimensions 112.2×70×22.8mm
Weight 180g

Request a Quote   |   Talk to Our Experts

Get a response within 24h

Need longer battery life or enhanced connectivity?
Check out M48 Cat6 MiFi-a performance-focused companion for on-the-go professionals.
