The Wewins M47 4G MIFI is a portable wireless router that integrates LTE and WIFI6 high-speed Wi-Fi access, and also RNIDS connection by USB, which provide users with portable and flexible data services. M47 supports Wireless network access, and provides data routing service, which provides following services:
- Data service
- SMS
- Security service
- Local and OTA maintenance management function
M47 key hardware spec:
- Modem: LTE modem
- Memory: 512Mb DDR, 512Mb NAND Flash
- Wi-Fi: SV6318 802.11b/g/n/[email protected] 20Mhz/40Mhz
- LTE: 1/3/7/8/20/28/40/38_41(120MHz)
- HSPA+/HSPA/WCDMA: B1/B8
- EDGE/GPRS/GSM:B3/B8
Features
Item | Description |
Frequency | Access to LTE wireless networks |
High-speed data access | LTE FDD: DL 150Mbps, UL 50Mbps |
LTE TDD: DL 110Mbps, UL 10Mbps | |
HSPA+: DL 21Mbps, UL 5.76Mbps | |
HSPA: DL 14.4Mbps, UL 5.76Mbps | |
WCDMA PS: 384Kbps | |
EDGE: DL 296Kbps, UL 236.8Kbps | |
GPRS: 85Kbps | |
Wi-Fi | Complies with wireless 802.11b/g/n/ax standards with data rates up to 229Mbps |
Wi-Fi Security: WEP, WPA2, WPA3, AES or TKIP, WPA2/WPA | |
Max 10 Wi-Fi connections | |
WPS(PBC,PIN) | |
MAC Whitelist, Blacklist, | |
Cellular Network Management | Traffic statistics |
APN Profile setting | |
Profile Management | |
Router | DHCP server |
DNS | |
Security | IP/Port/URL filter, Port forward, DMZ, UPnP, DDNS |
Messaging | SMS |
Phone book | |
USB | USB tethering by RNDIS/ECM |
Storage | Web Disk |
FW Update | FOTA/Local update |
Battery | Removable Li-on battery |
SIM | Removable Nano(4FF) SIM |
Hardware Specifications
Item |
Description |
||
Technical Standard |
WAN |
3GPP Release 10 |
|
WLAN |
IEEE 802.11b/g/n/ax |
||
Working FrequencyBand Remark:Here are generic bands for market sample, bands customized is available. |
LTE |
B1/3/7/8/20/28/40/38_41(120MHz) |
|
HSPA+/HSPA/UMTS |
B1/B8 |
||
EDGE/GPRS/GSM |
B3/B8 |
||
WLAN |
2.4GHz |
||

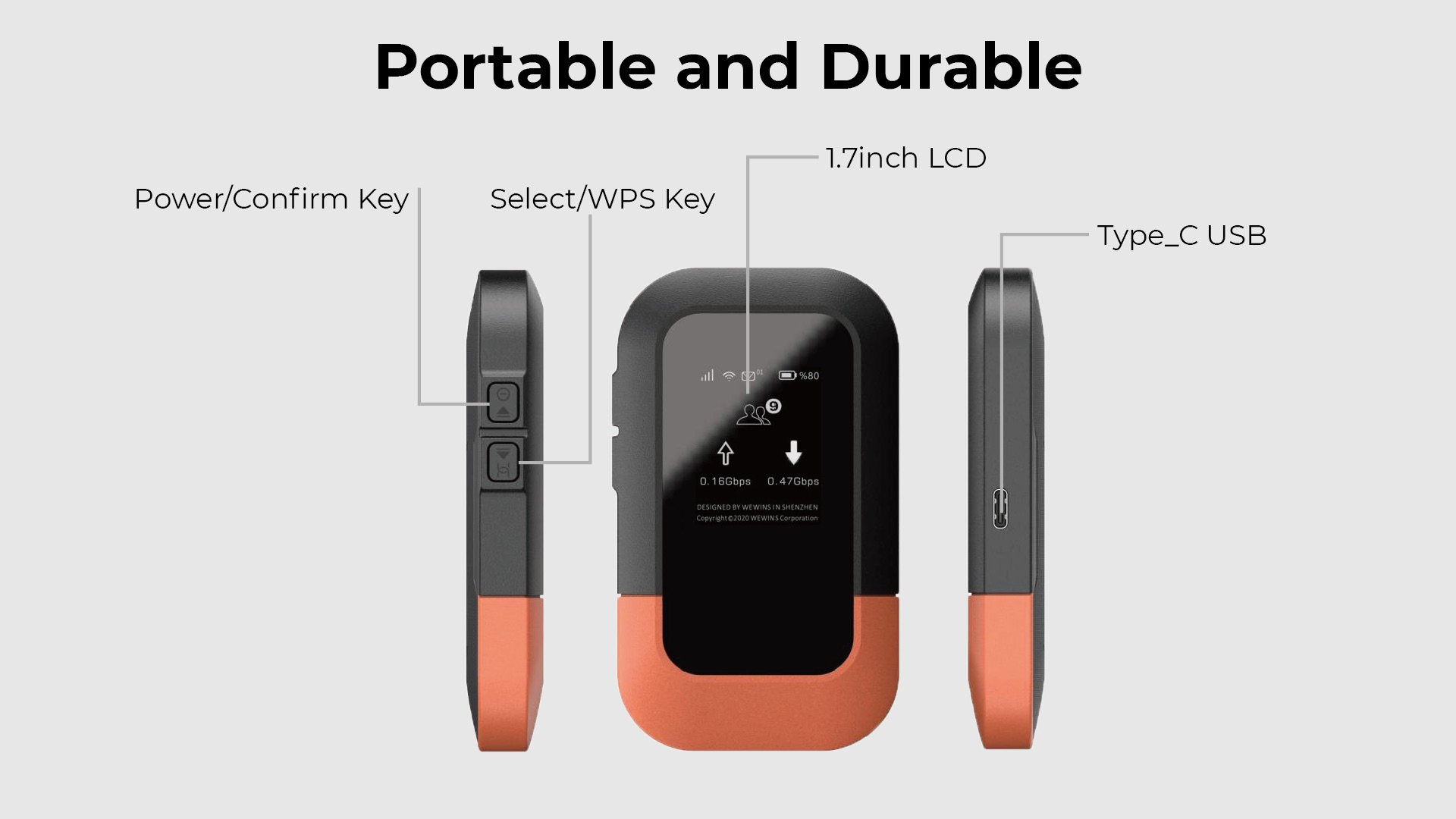

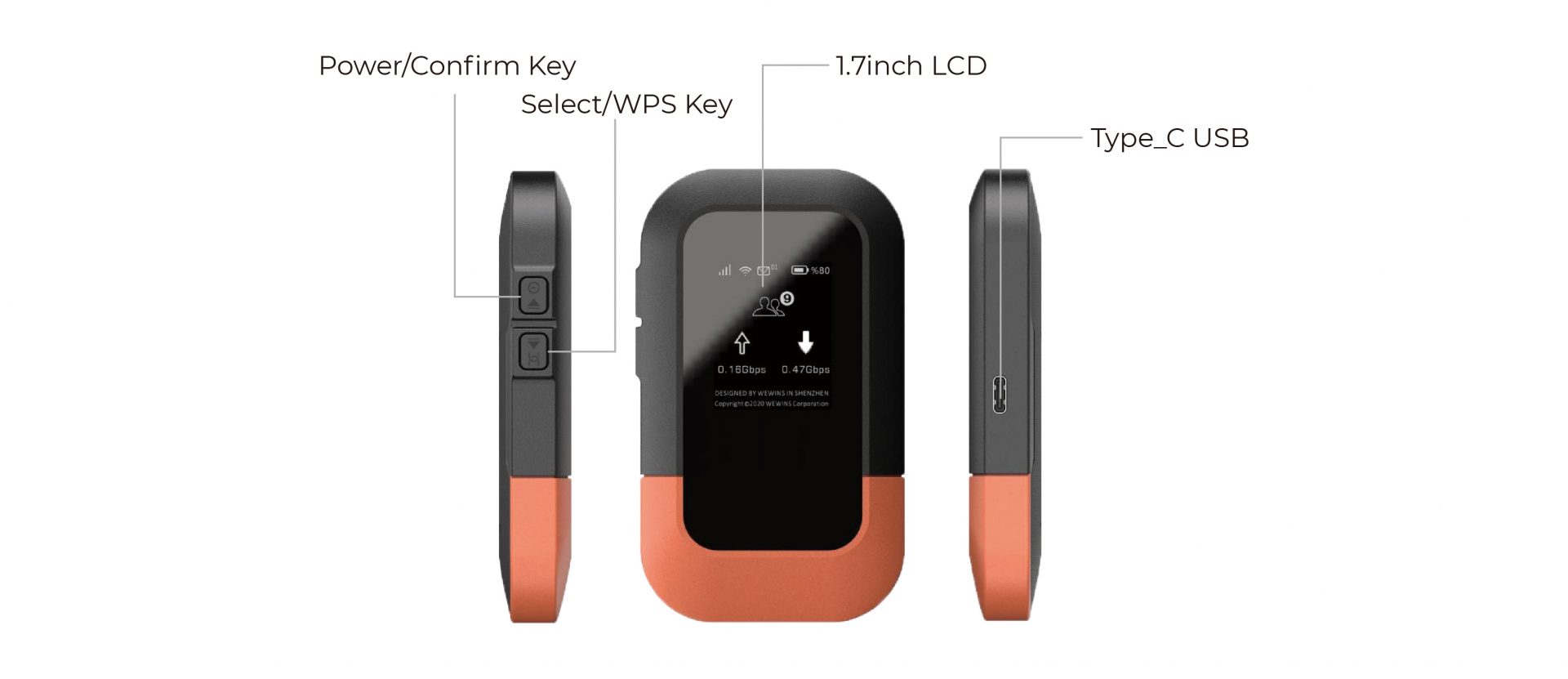

External Port |
● One USB2.0 Type-C female port ● One Nano-SIM card slot ● One SD card slot |
||

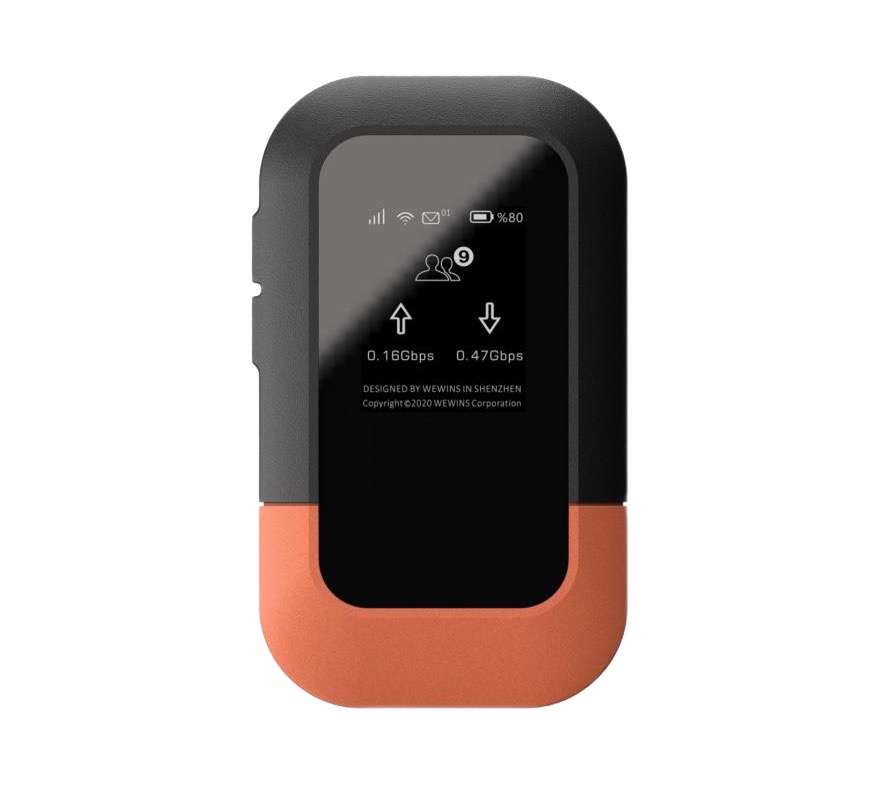

Display |
● 1.77inch TFT LCD ● 3 color battery LED |
||
Button |
● One Power/Confirm button ● One WPS/Scrolling button ● One Reset(hidden) button |
||
Battery |
Li-on 3000mah battery |
||
Antenna |
● Built-in LTE/UMTS/GSM primary antenna ● Built-in LTE/UMTS secondary antenna ● Built-in WLAN 2.4G antenna |
||
Maximum TX power |
LTE |
Conform to 3GPP Power Class 3 |
|
WLAN |
2.4G |
802.11b: 17dBm |
|
802.11g: 15dBm |
|||
802.11n: 14dBm |
|||
802.11ax: 13dBm |
|||
RX sensitivity |
LTE |
Conform to 3GPP Definition |
|
UMTS |
Conform to 3GPP Definition |
||
GSM |
-104dBm |
||
WLAN |
802.11b: -81dBm@11M |
||
802.11g: -72dBm@54M |
|||
802.11n: -64dBm@MSC7(HT20) |
|||
802.11ax: TBD |
|||
Power consumption |
Max 5W |
||
USB power supply |
Input 5V/1A |
||
Dimensions |
108.00*64.20*17.30mm |
||
Weight |
110g |
||
Case material |
PC,ABS |
||
Temperature |
● Working temperature: 0°C to 40°C ● Storage temperature: 0°C to 40°C |
||
Humidity |
5%-95%(Non-condensing) |
Antenna Frequency Specifications
Item | Description |
Frequency | |
Gain | LTE/UMTS/GSM Primary: 2~3.1dBi LTE/UMTS/GSM Secondary: 1.0~2.6dBi WIFI: 2.6dBi |
Efficiency | LTE/UMTS/GSM Primary: -2.8~-1.8dB LTE/UMTS/GSM Secondary: -3.2~-2.2dB WIFI: -2dB |
Polarization | LTE/UMTS/GSM: Linear WIFI: Linear |
Software Specifications
Item |
Description |
|
Cellular wireless network |
Network Search |
Supports automatic or manual network search, the default is automatic |
Connection Management |
Supports automatic and manual connection to the cellular network |
|
Network Mode |
Supports various network mode ● Auto ● LTE only ● WCDMA only ● GSM only |
|
Profile Management |
Auto mode, set the profile information required for Internet access according to the SIM card automatically, avoid cumbersome operations for users ● Profile name ● APN name ● User name ● User password ● Authentication type, auto/pap/chap ● IP type, ipv4/6 |
|
Traffic statistics |
Supports traffic statistics, including ● Download, upload and total traffic and duration since the equipment is powered up ● Sum of download, upload and total traffic and duration since historical statistics were cleared ● You can manually clear historical statistics |
|
Wi-Fi |
Wi-Fi settings |
● SSID/Key ● Channel selection, auto or manual ● Various security mode and algorithms ■Disable ■WEP (wired equivalent protocol) ■WPA2 personal (Wi-Fi Protected Access 2 Personal), AES or TKIP ■WPA2/WPA mixed mode (Wi-Fi Protected Access 2 Personal/Wi-Fi Protected Access Personal), AES or TKIP ● Enable/disable SSID broadcast ● max number of users up to 8 ● Enable/disable Wi-Fi |
WPS |
Wi-Fi Protected Setup (WPS) is a latest standard published by the Wi-Fi Alliance with the aim of simplifying the configuration process to establish a secure wireless home network. The device Supports two WPS methods ● PBC (Push Button Configuration), in which user simply has to push a actual button or virtual one on web UI ● PIN (Personal Information Number), in which a PIN is entered into device through Web UI
|
|
MAC Address Authentication |
Support the following MAC address authentication method ● White list ● Black list Max 11 MAC address entries can be set |
|
USB Tethering |
Automatically identify the operating system type and use RNDIS/ECM to share the network when the device is connected to the computer by USB Supported operating systems are ● Windows 7 and above ● Mac 10.8 and above ● Linux distributions such as Ubuntu, Fedora |
|
Router |
The device works as a route, supports ● Default route: 0.0.0.0 ● Default gateway address: 192.168.8.1, can be set to other address and mask ● Can be access by domain name “mobile.router” ● Standard protocol such as ARP, ICMP, IPv4, IPv6, etc. ● NAT, translate a public IP address to a private IP address and vice versa |
|
DHCP server |
DHCP server dynamically allocate IP address to client devices ● Enable/disable DHCP server ● Configures DHCP server address pool ● Lease time, default as 86400 seconds |
|
DNS relay |
Supports DNS relay for client devices ● Auto mode, use DNS servers from WAN ● Manual mode, set primary DNS and secondary DNS manually |
|
Basic Status |
Users can view the following basic device information on web UI ● SIM status, Signal strength, roaming status ● Operator name ● Data transmission indication ● Battery status ● Network access technology ● Network Status ● WAN IP ● DNS ● Wi-Fi Status ● The number of devices connected to MiFi and their details, including name, IP, MAC, etc. |
|
Phone Book
|
Supports contact group management, up to 10 ● Add group ● Delete group(s), batch operation is supported ● View and modify existing group information ● Supports search |
|
Supports contact management, up to 500 ● Add contact ● Delete contact(s), batch operation is supported ● Move contact(s) to group, batch operation is supported ● Import contact from SIM card ● Supports search ● View contacts list, Supports pagination display ● Modify existing contact information, including name, number, group, etc. ● Select one or more contacts and send them a text message |
||
SMS |
Supports SMS (short message service) related functions ● Inbox, outbox, and draft management ● View list of messages, Supports pagination display ● and detail of messages, including number, content, date, etc. ● Edit, save, delete, and modify SMS ● Sending short message to one or more contacts ● Receives short message, new and unread message alerts ● Replay and forward message ● Supports various data coding scheme, GSM 7-bit and UCS ● Supports normal message, up to 160 ASCII characters or 70 UCS2 characters ● Supports long message (concatenated short messages), up to 612 ASCII characters or 268 UCS2 characters ● Supports flash message |
|
Web Disk |
Supports SD card content operations on web UI: ● Browse the contents on the SD card by category. The supported categories include document, audio, video, image, and package, Supports pagination display ● User friendly viewing of media files ● Download/upload file from/to SD card ● Create folder ● Rename and delete ● Supports wildcard search ● Special account to access SD card Also Supports ● View SD card capacity and remaining space ● Format SD card In addition to web access, it can also be accessed as local storage, just like accessing USB flash disk on computer If internet storage mode is set, you can even remotely access the contents on the SD card |
|
Security |
The device supports the following security functions. ● IP Filter ● Port Filter ● URL Filter ● Port forward ● DMZ ● UPnP ● DDNS
|
|
Power Management |
● Supports sleep to save power ● Supports temperature control to protect the battery
|
|
Firmware Update |
FOTA |
Provide complete FOTA solution ● Detect new firmware information on FOTA server manually/automatically, including version, size, release date, and release note, etc. ● Download new firmware from the server and update the device The server initiates a firmware update for the specified device |
Local Update |
Users can also upload firmware and update it through the Web UI |
|
SIM management |
Supports PIN of SIM Card, including ● Enable/disable PIN ● Change PIN ● Verify PIN ● Reset Pin by PUK |
|
Customization functions |
● Web UI ● SIM Lock ● APN (Profile) ● Trusted boot ● USSD ● Domain name |
Applications
Packing List & Certification
Item | Qty(pcs) | Description | Remarks |
MiFi Device | 1 | Standard | |
USB Cable | 1 | USB2.0 A-Male to Type_C, 5V/1A, 30cm, Black | Standard |
Battery | 1 | Li-on 3000mAh, | Standard |
Gift Box | 1 | Customized | Standard |
User manual | 1 | Customized | Standard |
Warranty Card | 1 | Customized | Optional |
Charger | 1 | 5V/1A | Optional |
Item | Description |
CE | CE certification with MIFI and battery |
UN38.3 | Battery with packing materials |
Local Certification | Support as per request |
