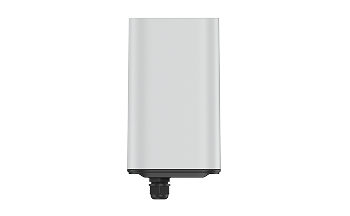

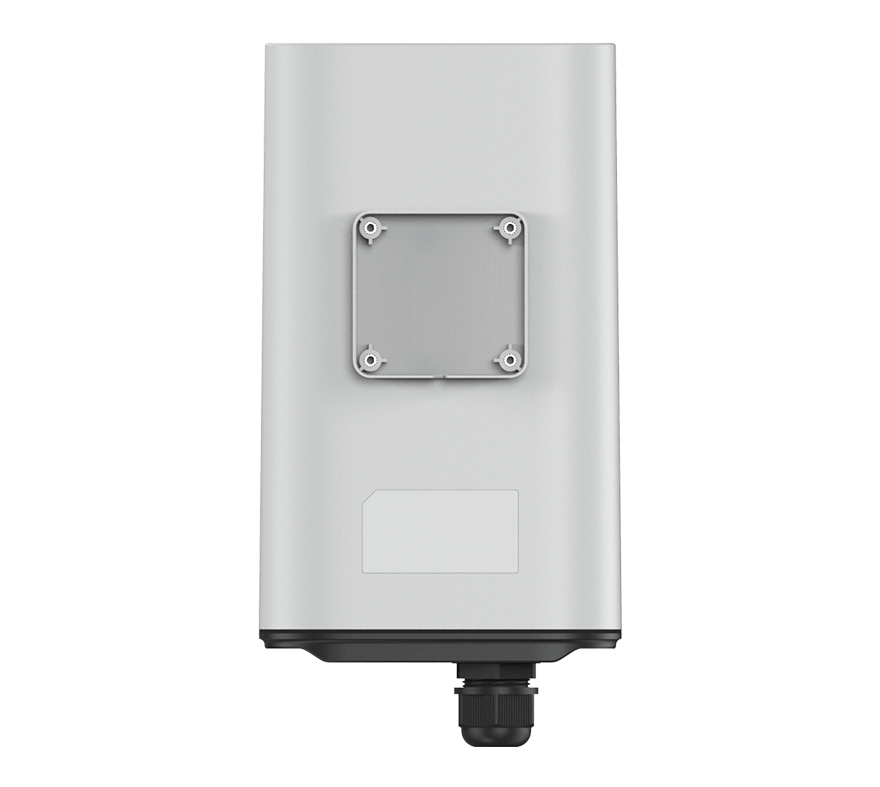

The Wewins O021 5G Outdoor CPE is a high-performance, industrial-grade 5G CPE device that supports both 5G NR Sub-6 GHz and mmWave frequencies.
Integrated with a high-gain directional antenna and IP67-rated enclosure, this 5G Outdoor CPE ensures reliable connectivity in challenging outdoor environments.
With support for multi-operator frequency bands and NSA/SA network architectures, the O021 delivers ultra-low latency and ultra-fast data rates, meeting the demands of industrial IoT, remote video surveillance, and enterprise private networks.
Powered by Wewins’ advanced antenna technology and robust industrial design, the O021 5G Outdoor CPE maintains stable 5G connections even in harsh conditions such as high temperatures, heavy rain, and strong winds.
5GODU-O021
- Dual-Mode Support: Sub-6 GHz & mmWave Breakthrough dual-mode capability, compatible with global mainstream 5G frequency bands for broader connectivity options.
- High-Gain Directional Antenna for Extended Coverage Equipped with a high-gain directional antenna and 4×4 MIMO technology, ensuring stronger signal coverage and stability for long-distance transmission.
- Industrial-Grade IP67 Protection Fully sealed design with IP67 rating, protecting against dust, rain, and extreme temperatures, ensuring reliable long-term outdoor operation.
- Multi-Operator Frequency Band Compatibility Supports multiple operator frequency bands for both 5G and 4G, enabling flexible deployment across diverse scenarios and regions.
Key Features
Dual-Mode 5G: Sub-6 & mmWave
Downlink Speed up to 3.4Gbps
High-Gain Antenna
Ultra-Low Latency
IP67 All-Weather Protection
Quick & Easy Deployment
Application Scenarios
Remote Video Surveillance:
Providing high-speed network access for real-time HD monitoring
Smart City:
Supporting smart street lighting, smart transportation, and other smart city infrastructure
Industrial IoT:
Enabling remote monitoring and data acquisition for industrial equipment
Enterprise Private Networks:
Building secure and reliable 5G wireless private networks
Emergency Communications:
Rapidly deploying emergency networks to ensure critical connectivity
Rural and Remote Area Coverage:
Extending high-speed 5G access to underserved and remote regions
Specifications
| Item | Description |
| Platform | Qualcomm SDX55 3GPP Release 15 Compliance |
| Network support | Supported frequency:
|
| SA&CAT | 5G Sub-6, NSA&SA/up to 2CC/200MHz EN-DC |
| LTE Band width | 1.4M/3M/5M/10M/15M/20M/100MHz |
| MIMO | Sub-6: DL 4×4 / UL 2×2 |
| BLE | nRF52833 BLE 5.3, For configuration and installation assistant |
| Antenna | Built-in high gain antennas:
|

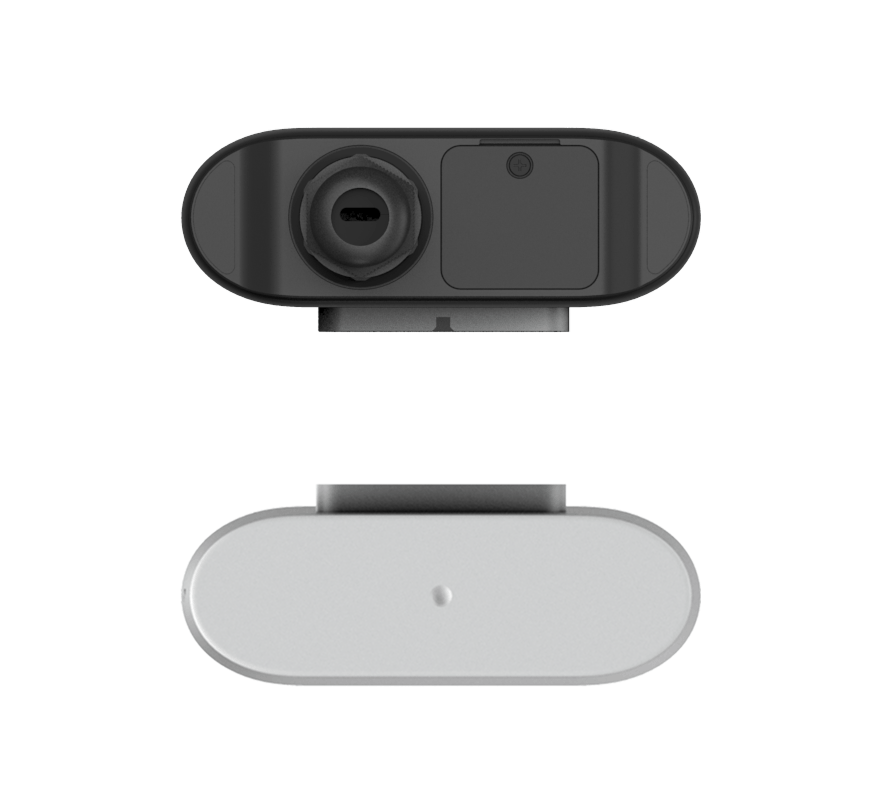

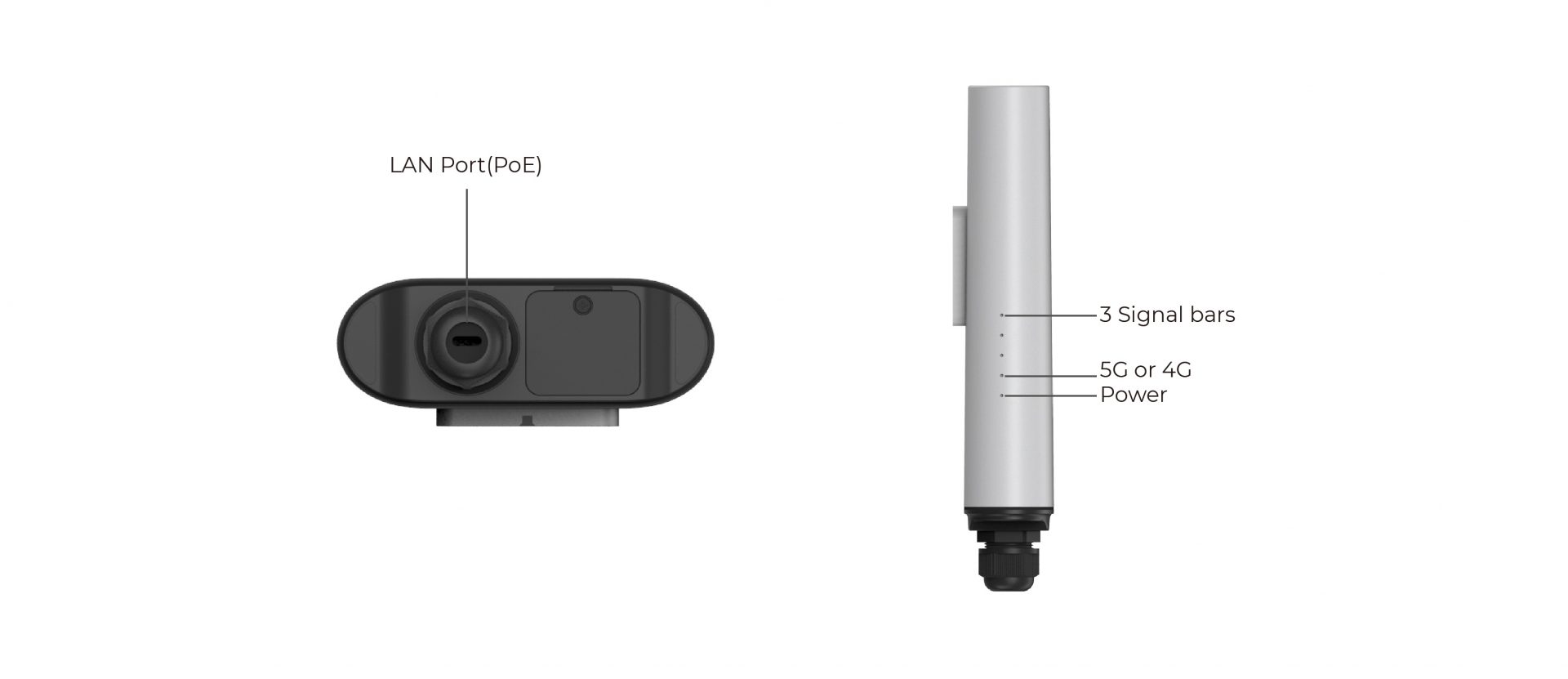

| Physical Interface | 1 x 2.5CF LAN Port (PoE) 1 x Micro-Sim slot 1 x Reset Key 1 x USB Type-C 5 LED indicators (3 bars signal strength indicators , 1 network status and 1 power indicator) |
| Power Supply |
|
| Environmental |
|
| Size | 225*130*45mm |
