LTE Cat4 Indoor CPE(C220)

The Cat4 Indoor CPE C220 is a wireless router, which support 2.4G Wi-Fi, providin
g high-speeding and stable LTE Cat4 network for users at home or in office. The pr
oduct confirms to 3GPP Release10 standard.

key features for user

  • Data service
  • SMS
  • Security service
  • Local and OTA maintenance management function

Features

C220 mainly supports the following features:

Item Description
Frequency Access to LTE wireless networks
High-speed data access LTE FDD: DL 150Mbps, UL 50Mbps
LTE TDD: DL 110Mbps, UL 10Mbps
HSPA+: DL 21Mbps, UL 5.76Mbps
HSPA: DL 14.4Mbps, UL 5.76Mbps
WCDMA PS: 384Kbps
Wi-Fi Complies with wireless 802.11b/g/n standards   with data rates up to 300Mbps
Wi-Fi Security: WEP, WPA2, AES or TKIP, WPA2/WPA
Max 32 Wi-Fi connections
WPS (PBC, PIN)
MAC Whitelist, Blacklist
Cellular Network Management Traffic statistics
APN Profile setting
Profile Management
Router DHCP server
DNS
Security IP/Port/URL filter, Port forward, DMZ, UPnP, DDNS
Messaging SMS
Phone book
FW Update FOTA/Local update
SIM Removable nano(4FF) SIM

Technical Specification

Hardware Specifications

Item Description
Technical Standard WAN 3GPP Release 10
WLAN IEEE 802.11b/g/n
Working Frequency Band LTE B1/B3/B7/B8/B20/B38/B40/B41
HSPA+/HSPA/UMTS B1/B3/B8
GSM B1/B3/B8
WLAN 2.4GHz

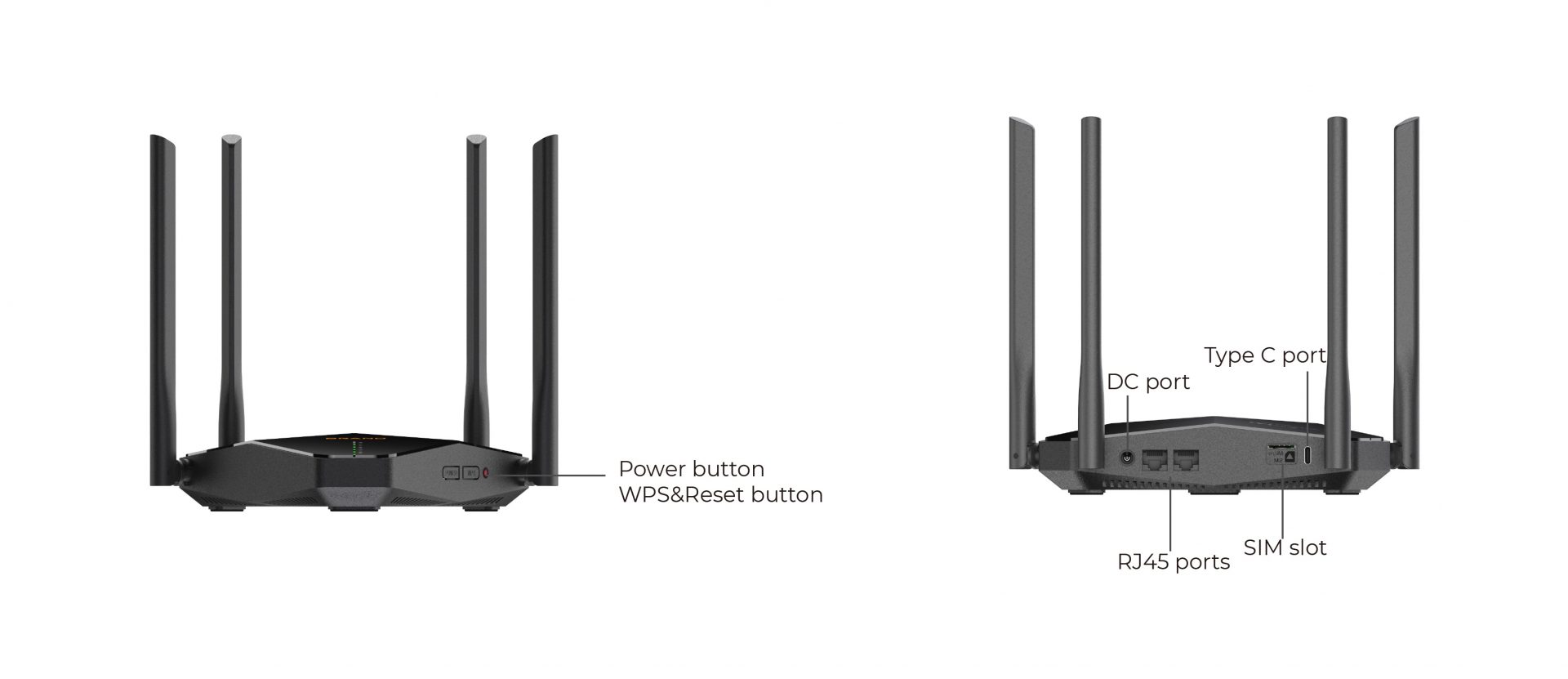

External Port
  • Three Million ethernet RJ45 ports (Optional)
  • One RJ11 port for VoLTE (Optional)
  • One Type C port for debug.
  • One DC port for power adapter
  • One nano(4FF) sim slot
Battery 4000mAh 18650 battery (Optional)
Indicator
  • One SYS LED
  • One ETH LED
  • One Wi-Fi/WPS LED
  • One 4G LED
  • One NET LED
Button
  • One Power button
  • One WPS/Reset button
Antenna
  • 2 LTE/UMTS/GSM external antennas
  • 2 WLAN 2.4G external antennas
Maximum TX power LTE Conform to 3GPP Power Class 3
Wi-Fi Gain About 3dBi
RX sensitivity LTE Conform to 3GPP Definition
UMTS Conform to 3GPP Definition
GSM Conform to 3GPP Definition
Max Power consumption 7W
DC power supply Input 5V/2A
Dimensions 177*155*41 mm
Case material PC, ABS
Temperature
  • Working temperature: 0°C to 40°C
  • Storage temperature: -20°C to 60°C
Humidity 5%-95%(Non-condensing)

Antenna Frequency Specifications

Item Description
Gain
  • LTE/UMTS Primary: 3.5dBi
  • LTE/UMTS Secondary: 3.5dBi
  • WIFI 1: 5dBi
  • WIFI 2: 5dBi
Polarization
  • LTE/UMTS: Linear
  • Wi-Fi: Linear

Software Specifications

Item Description

Cellular wireless network

Network Search

Supports automatic or manual network search, the default is automatic

Connection Managem ent

Supports automatic and manual connection to the cellular network

Network Mode

Supports various network mode

● Auto

● LTE only

● WCDMA only

● GSM only

Profile Management

Auto mode, set the profile information

required for Internet access according to the SIM card automatically, avoid cumbersome operations for users

● Profile name

● APN name

● User name

● User password

● Authentication type, auto/pap/chap IP type, ipv4/6

Traffic statistics

Supports traffic statistics, including download, upload and total.

Wi-Fi

Wi-Fi settings

● SSID/Key

● Channel selection, auto or manual

● Various security mode and algorithms

  • Disable
  • WEP (wired equivalent protocol)
  • WPA2 personal (Wi-Fi Protected Access 2 Personal), AES or TKIP
  • WPA2/WPA mixed mode (Wi-Fi Protected Access 2 Personal/Wi-FiProtected Access Personal), AES or TKIP

● Enable/disable SSID broadcast

● max number of users up to 32 Enable/disable Wi-Fi

WPS

Wi-Fi Protected Setup (WPS) is a latest standard published by the Wi-Fi Alliance with the aim of simplifying the configuration

process to establish a secure wireless home network.

The device Supports two WPS methods

● PBC (Push Button Configuration), in which user simply has to push a actual button or virtual one on web UI

● PIN (Personal Information Number), in which a PIN is entered into device

through Web UI



MAC Address Authentication

Support the following MAC address authentication method

Black list

Router

The device works as a route, supports

● Default gateway address: 192.168.8.1

● Standard protocol such as ARP, ICMP, IPv4, IPv6, etc.

NAT, translate a public IP address to a private IP address and vice versa

DHCP server

DHCP server dynamically allocate IP address to client devices

● Enable/disable DHCP server

● Configures DHCP server address pool

● Lease time, default as 86400 seconds

DNS relay

Supports DNS relay for client devices

● Auto mode, use DNS servers from WAN

● Manual mode, set primary DNS and secondary DNS manually

Basic Status

Users can view the following basic device information on web UI

● SIM status, Signal strength, roaming status

● Operator name

● Data transmission indication

● Network access technology

● Network Status

● WAN IP

● DNS

● Wi-Fi Status

The number of devices connected to CPE and their details, including name, IP, MAC, etc.

Phone Book

Supports contact group management

● Add group

● Delete group(s), batch operation is supported

● View and modify existing group information Supports search

Supports contact management

● Add contact

● Delete contact(s), batch operation is supported

● Move contact(s) to group, batch operation is supported

● Import contact from SIM card

● Supports search

● View contacts list, Supports pagination display

● Modify existing contact information, including name, number, group, etc.

Select one or more contacts and send them a text message

SMS

Supports SMS (short message service) related functions

● Inbox, outbox, and draft management

● View list of messages, Supports pagination display

● and detail of messages, including number, content, date, etc.

● Edit, save, delete, and modify SMS

● Sending short message to one or more contacts

● Receives short message, new and unread message alerts

● Replay and forward message

● Supports normal message, up to 160 ASCII characters or 70 UCS2 characters

● Supports long message (concatenated short messages), up to 612 ASCII characters or 268 UCS2 characters

Supports flash message

Security

The device supports the following security functions.

● IP Filter

● URL Filter

● DMZ

● UPnP

● DDNS

Firmware Update

FOTA

Provide complete FOTA solution

● Detect new firmware information on FOTA server manually/automatically,

including version, size, release date, and release note, etc.

● Download new firmware from the server and update the device

The server initiates a firmware update for the specified device

Local Update

Users can also upload firmware and update it through the Web UI

SIM

management

Supports PIN of SIM Card, including

● Enable/disable PIN

● Change PIN

● Verify PIN

● Reset Pin by PUK

Customization functions

● Web UI

● SIM Lock

● APN (Profile)

● Trusted boot

● USSD

● Domain name

Applications

Application1: Accessing the Internet by mobile network
Application2: Accessing the Internet by Ethernet network

System Architecture

Packing List & Certification

Item Qty(pcs) Description Remarks
CPE Device 1   Standard
Network cable 1 1m Standard
Gift Box 1 Customized Standard
User manual 1 Customized Standard
Power adapter 1 5V/2A Standard
