CAT4-CPE-C100

C100 | Compact LTE Cat4 Indoor CPE with eSIM & Backup Battery

Reliable 4G Connectivity for Homes, Offices & Mobile Workspace

The WEWINS C100 is a compact, plug-and-play 4G LTE Cat4 CPE router designed for flexible deployment in homes, small offices, and remote locations.

It supports both Micro SIM and eSIM for easy carrier switching, and offers download speeds up to 150Mbps.

Equipped with 2.4GHz Wi-Fi, VoLTE-ready RJ11 port, and an optional 4000mAh battery for mobile or backup power, the C100 delivers stable, portable connectivity wherever traditional broadband is unavailable.



  • Plug & Play Connectivity
    LTE and Wi‑Fi access with no configuration needed
  • Battery Backup Option
    Optional 4000 mAh battery for uninterrupted use during power outage.
  • Flexible SIM Management
    Dual SIM (eSIM + Micro SIM) for easy carrier switching.
  • Voice via LTE
    RJ11 port supports VoLTE for crystal-clear calls in remote areas.

Get a Quote

Key Features

High-Speed LTE Cat4

Global LTE Bands

WIFI speed up to 300Mbps

Optional Battery Backup

eSIM Flexibility

Secure Remote Management

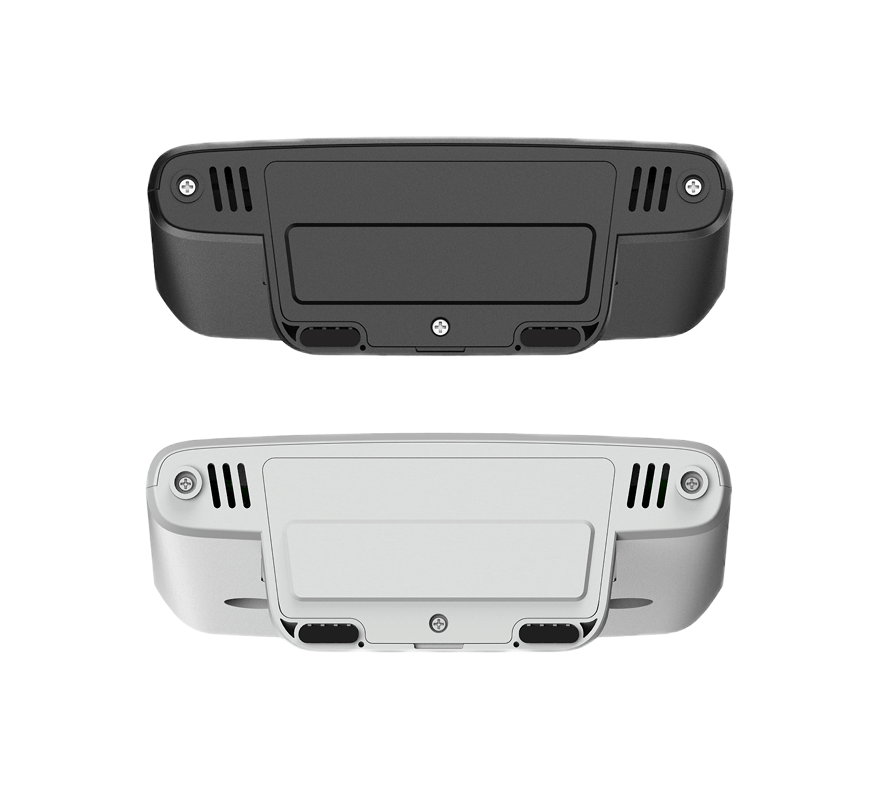

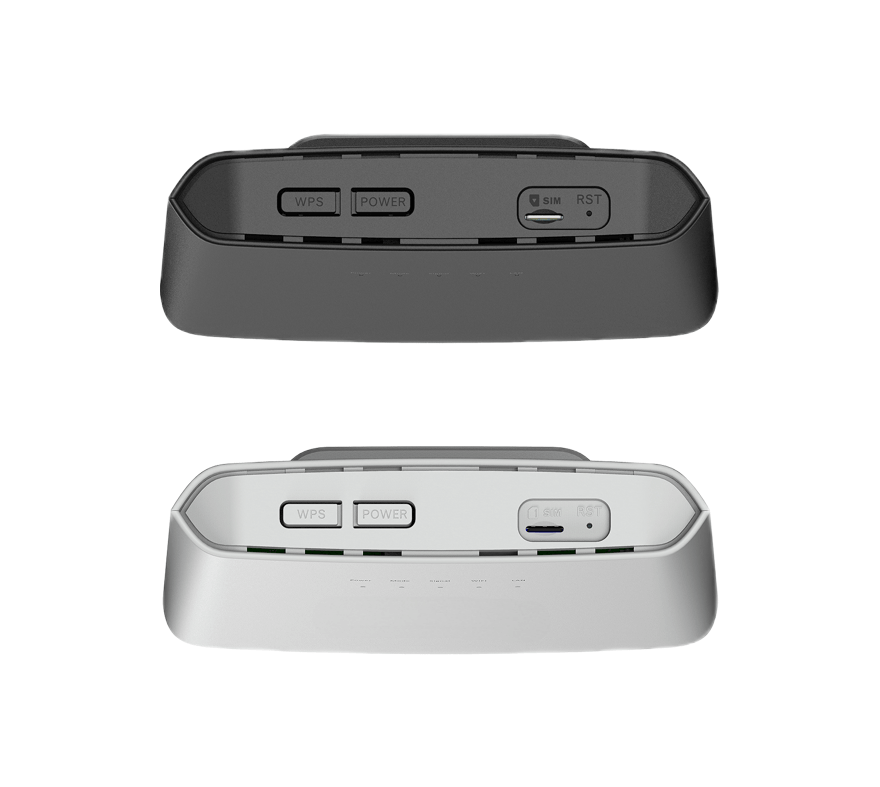

SIM Slot and Antenna Interface of Wewins C100 Outdoor CPE

Applications

Accessing the Internet by mobile network

Accessing the Internet by Ethernet network

Telephone service

The Wewins C150 5G CPE router is engineered to meet the needs of diverse enterprise applications, from home offices and small businesses to temporary event networks. Its high-speed 5G connectivity, enterprise-grade Wi-Fi 6, and optional battery backup make it the perfect solution for remote work, mobile offices, retail shops, and IoT deployments. Easily deployable for exhibitions, pop-up installations, and mission-critical temporary networks, the C150 ensures reliable wireless broadband and seamless enterprise connectivity in any scenario.

Specifications

Item Description
Cellularrate
150mbps UL:50mbps
Support frequency band
LTE B1/3/5/8/7/20/38/40/41
HSPA+/HSPA/UMTS B1/5/8
EDGE/GPRS/GSM B5/8/3
Wifi rate
300Mbps

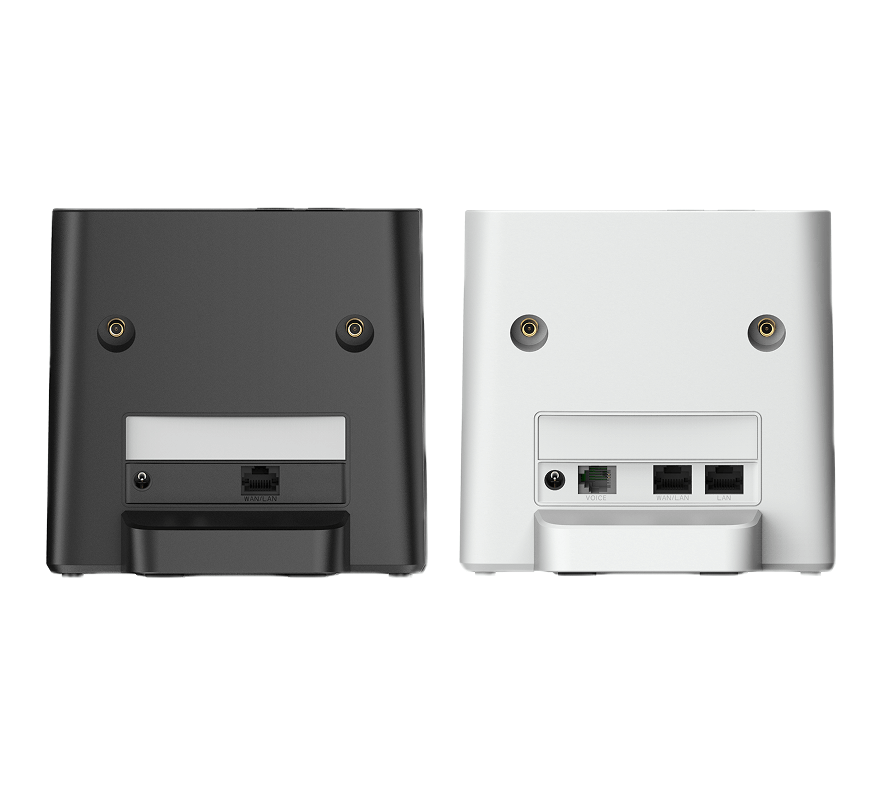

Interface configuration
One RJ11 port for VoLTE (Optional)
Two SMA ports for external antenna (Optional)
Two 100Mbps ethernet ports (Optional)
Battery
4000mAh Battery(optional)
Size
143*144*53 mm
Dimensions
234g

FAQ

When the device is working, press the reset button for 3 seconds until the indicator starts to blink. About 30 seconds later the indicator stops blink that means device complete the reset.

Restore the device and use the default Wi-Fi password and login password to try again.

  • Please check if the SIM card is inserted.
  • Please check if your SIM card is out of service.
  • Please check there is any wrong about network connection steps.
  • Ensure your computer is connected to the device through an Ethernet cable or Wi-Fi.
  • Ensure your computer is set to obtain an IP address and DNS server address automatically.
  • Restart your browser, or try another browser.
  • If the problem persists, restore the device to its factory settings.

Operating environment

  • Ideal operating temperatures are 0℃to 40℃. Ideal storage temperatures are -20℃ to +60℃.
  • Keep the device away from heat and fire.
