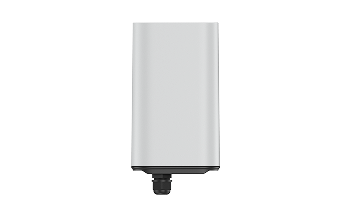

Wewins C120 is a rugged industrial-grade 5G outdoor CPE router designed for high-performance Fixed Wireless Access (FWA) and Mobile Broadband (MBB) deployments.
Powered by the Qualcomm SDX55 platform and compliant with 3GPP Release 15, it delivers ultra-fast, low-latency connectivity in harsh outdoor environments. With support for global 5G Sub-6GHz bands, PoE power supply, and IP65-rated weatherproof housing, C120 is the ideal solution for remote enterprise sites, rural broadband, construction fields, and smart city infrastructures.
5GMBB&FWA-ODU-C120
- Global 5G & LTE Support
- High-Gain Antenna System
- Rugged Outdoor Design
- Easy Installation & Power
- Industrial-Grade Connectivity
Note: The bracket may be varied due to different installation requirement.
Key Features
2.5G Ethernet
Wide Temp Range
IP65 Rated
High-Gain Antennas
PoE Powered
Global 5G
Application Scenarios
C120 5G Outdoor CPE is a high-performance, industrial-grade 5G wireless router designed for challenging outdoor deployments. Powered by the Qualcomm SDX55 platform and compliant with 3GPP Release 15, it supports global 5G NR Sub-6GHz bands in both NSA and SA modes, ensuring wide compatibility for international markets.
Engineered for industrial and commercial use, the C120 features high-gain antennas, IP65-rated enclosure, and 6KV surge protection, delivering robust 5G CPE performance in harsh environments. It is ideal for applications such as smart city infrastructure, industrial IoT connectivity, edge computing networks, and remote access solutions in construction, energy, agriculture, and public services.
Surveillance Backhaul
Industrial IoT
Public Safety Systems
Rural 5G Access
City Deployment
Remote Worksites
Specifications
| Item | Description |
| Platform | Qualcomm Snapdragon X55 |
| Network support | 5G/4G multi-mode, allows to use 4G as an alternative connection SA&CAT:-5G NSA/SA network. |
| SA&CAT | -5G NSA/SA network. |
| LTE Band width | 5G NR up to 200MHz |
| MIMO | 4 x 4 MIMO downlink and 2 x 2 MIMO uplink |
| BLE | BLE 5; -Configuration over BLE |
| Antenna | -4 omni-directional antennas for 360° Signal reception. 2 enhanced directional antennas |
| Physical Interface | -1 2.5GE LAN port. -1 Micro Sim slot.-1 Reset Key.-1 USB Type-C port. |
| Power Supply | Passive PoE: DC 48V/0.5A |
| Environmental | "1：IP65 2：Working Range -20 to 55°C 3：Lightning Surge Protection 6KV" |
| Size | 225*130*45mm 792.6g |
